2023 TEREX FINLAY J1175 JAW CRUSHER J-1175
Contact Seller
Dealer
Finlay Group NZ Ltd
726 Main North Road
Kaiapoi, Canterbury
Features
| Title | 2023 TEREX FINLAY J1175 JAW CRUSHER J-1175 |
| Type | Screening and Crushing |
| Sub Type | Screening - Crushing |
| Class | Jaw Crusher |
| Make | TEREX FINLAY |
| Model | J1175 JAW CRUSHER |
| Series | J-1175 |
| Year | 2023 |
| Sale Price | POA |
| Hire Rate | POA |
| Listing Type | New |
| Stock Number | 4550034 |
| RefCode | TA1130009 |
| Operator Available | No |
| Transport Available | No |
| Engine | Tier 3 / stage 3A: Caterpillar Cat C9.3 |
| Engine Power - kW | 261kW (350hp) |
| Working Length - mm | 14,500mm (47'8") |
| Working Width - mm | 6,200mm (20'4") |
| Conveyor Belt Width - mm | 1000mm (40") |
| Discharge Height - mm | 3,600mm (11'10") |
| Hopper Size - m3 | Hopper Capacity: 9000mm³ (11.7yd³) |
| Length - mm | 15,700mm (51'8") |
| Width - mm | 6,200mm (20'4") |
| Height - mm | 3,960mm (12'1") |
| Weight - kg | 51,300-53,500kg (113,096-117,946lbs) |
Description
JAW CRUSHER FOR SALE
J-1175 Available in New Zealand.
ENQUIRE NOW!

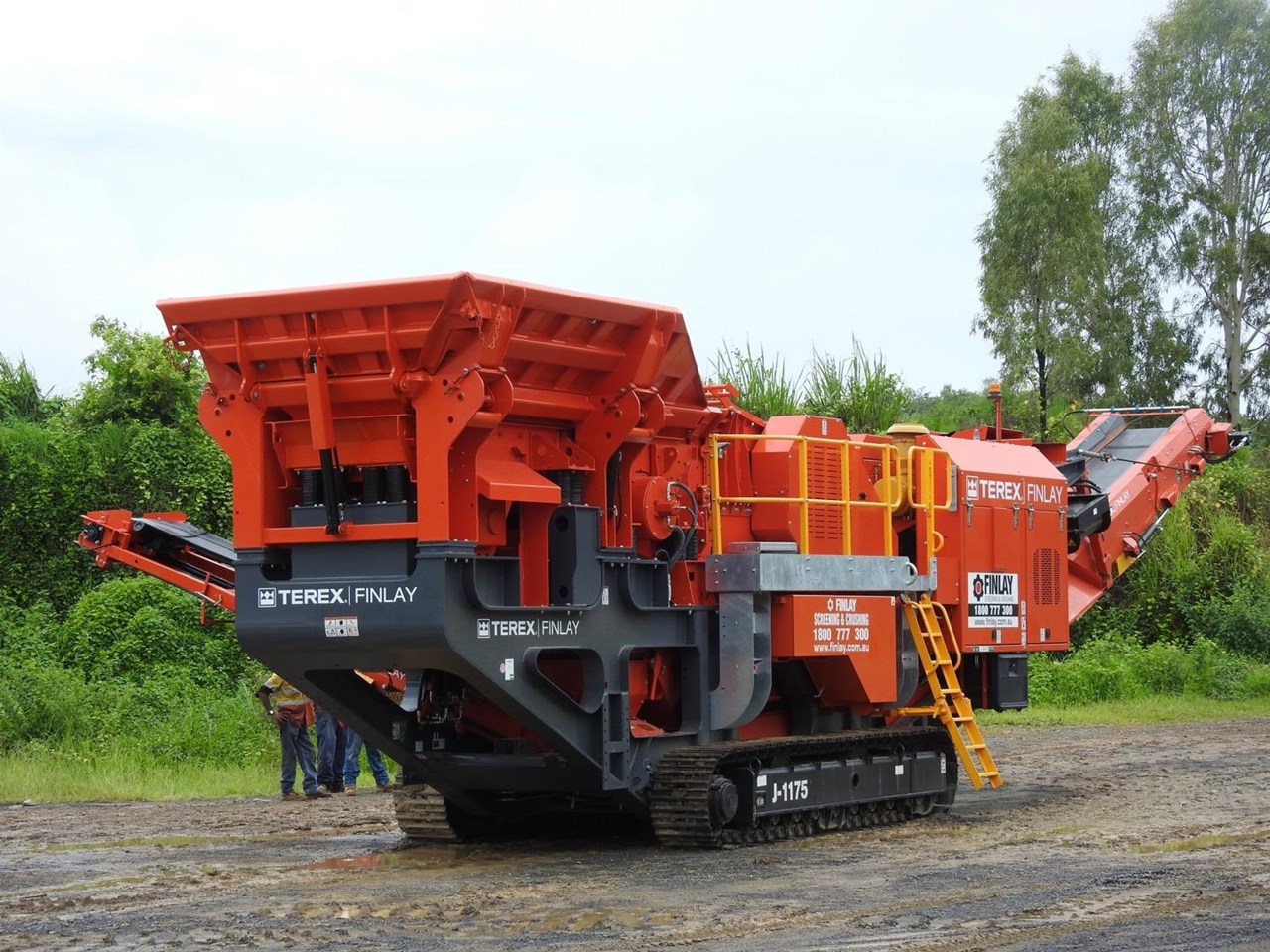

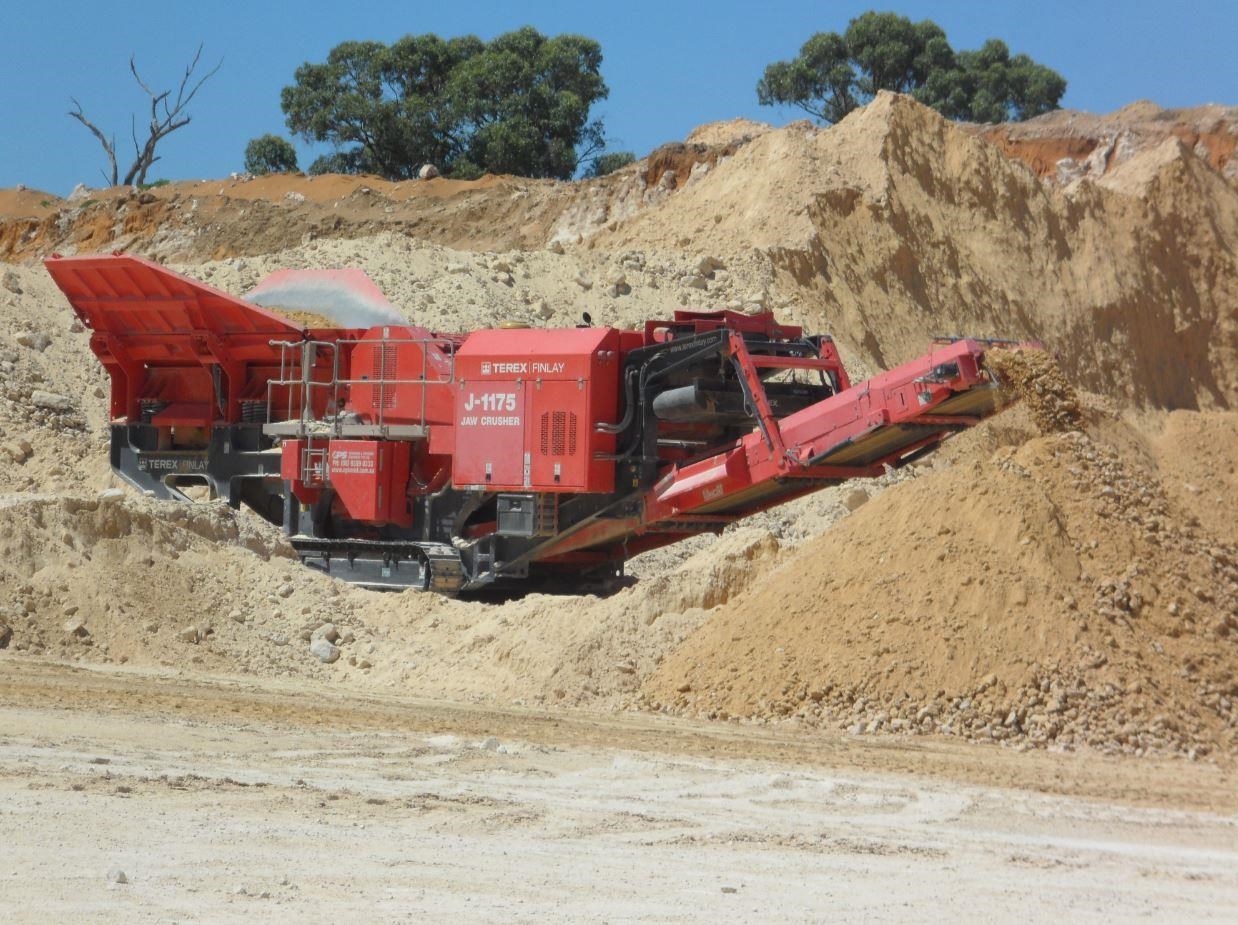

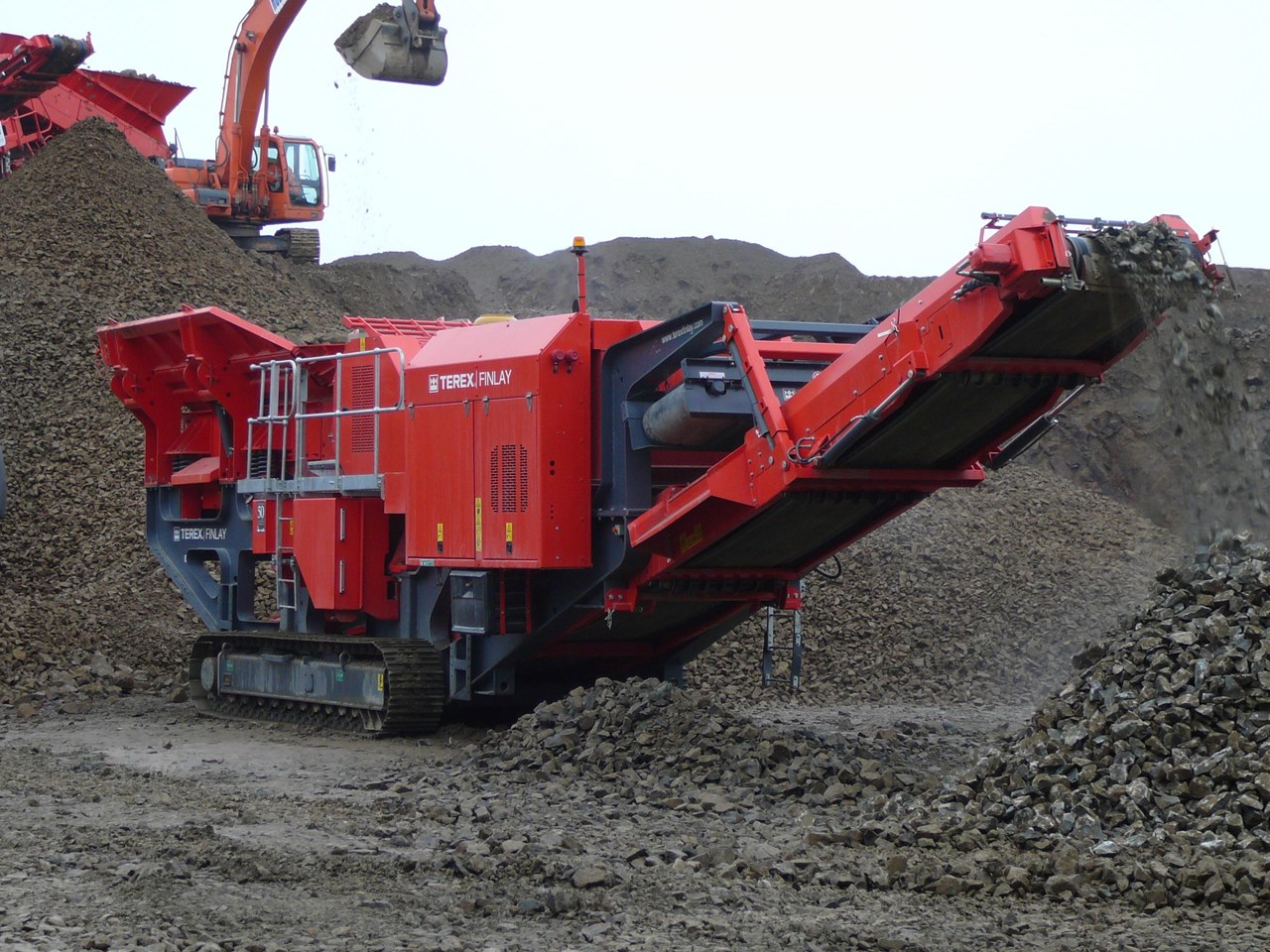

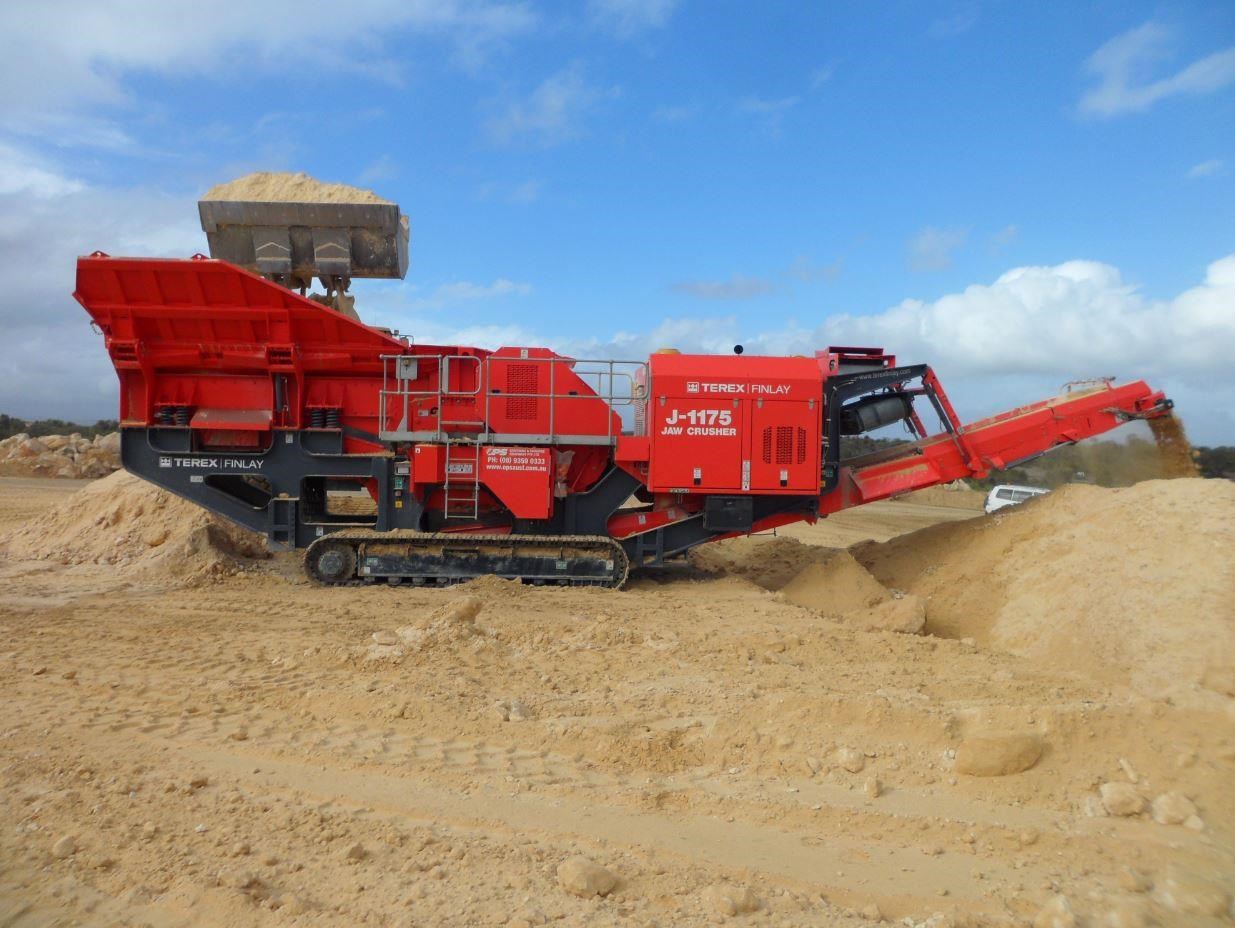

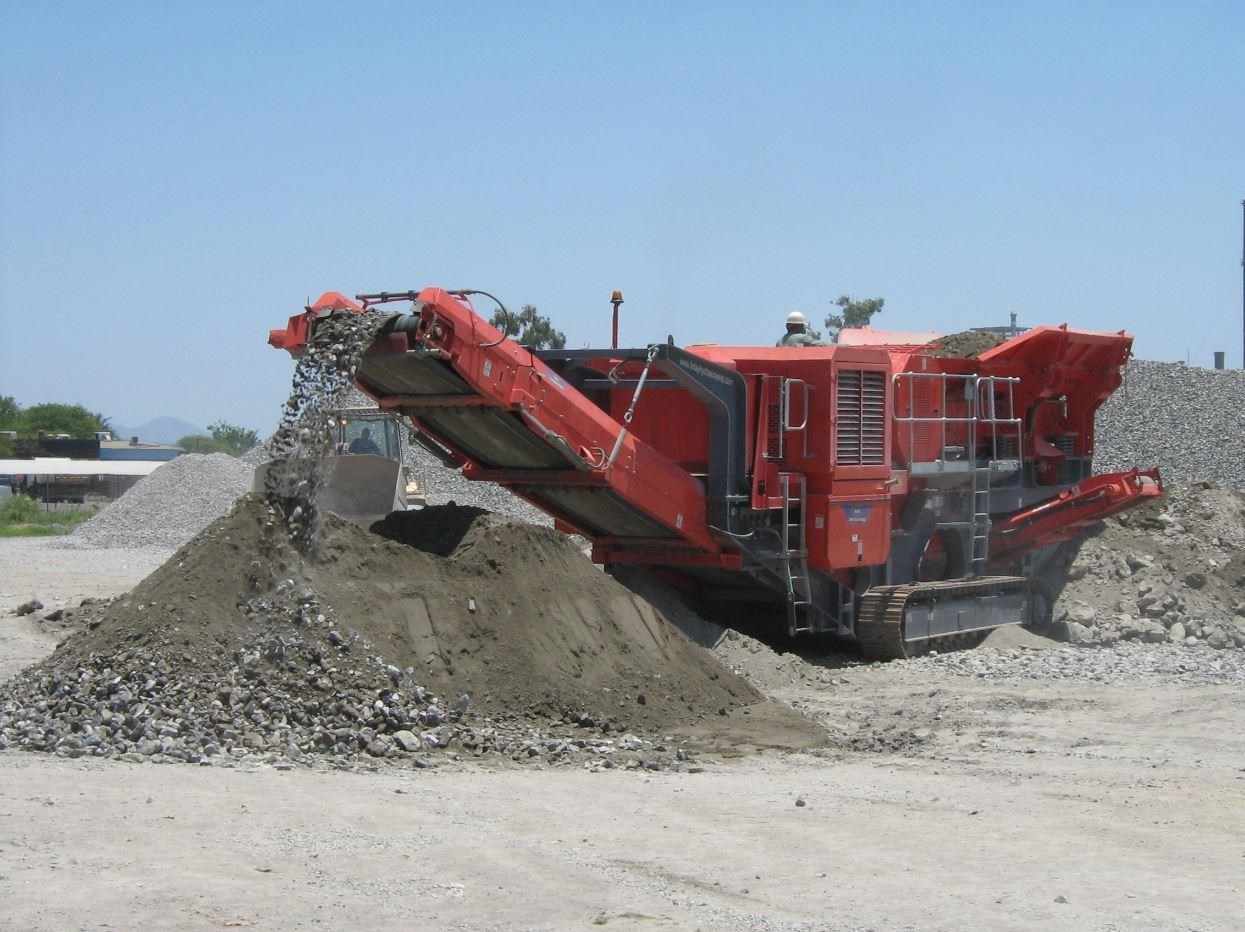

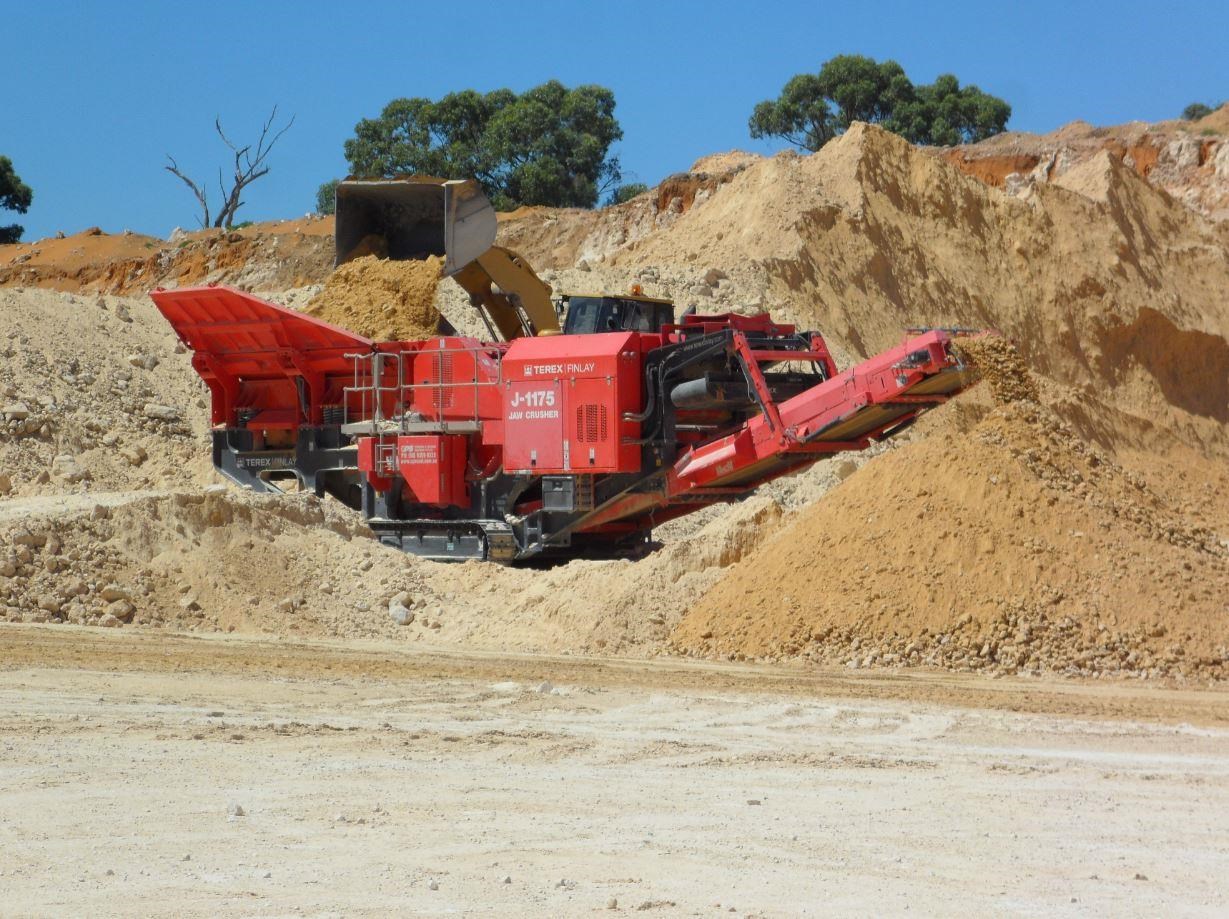

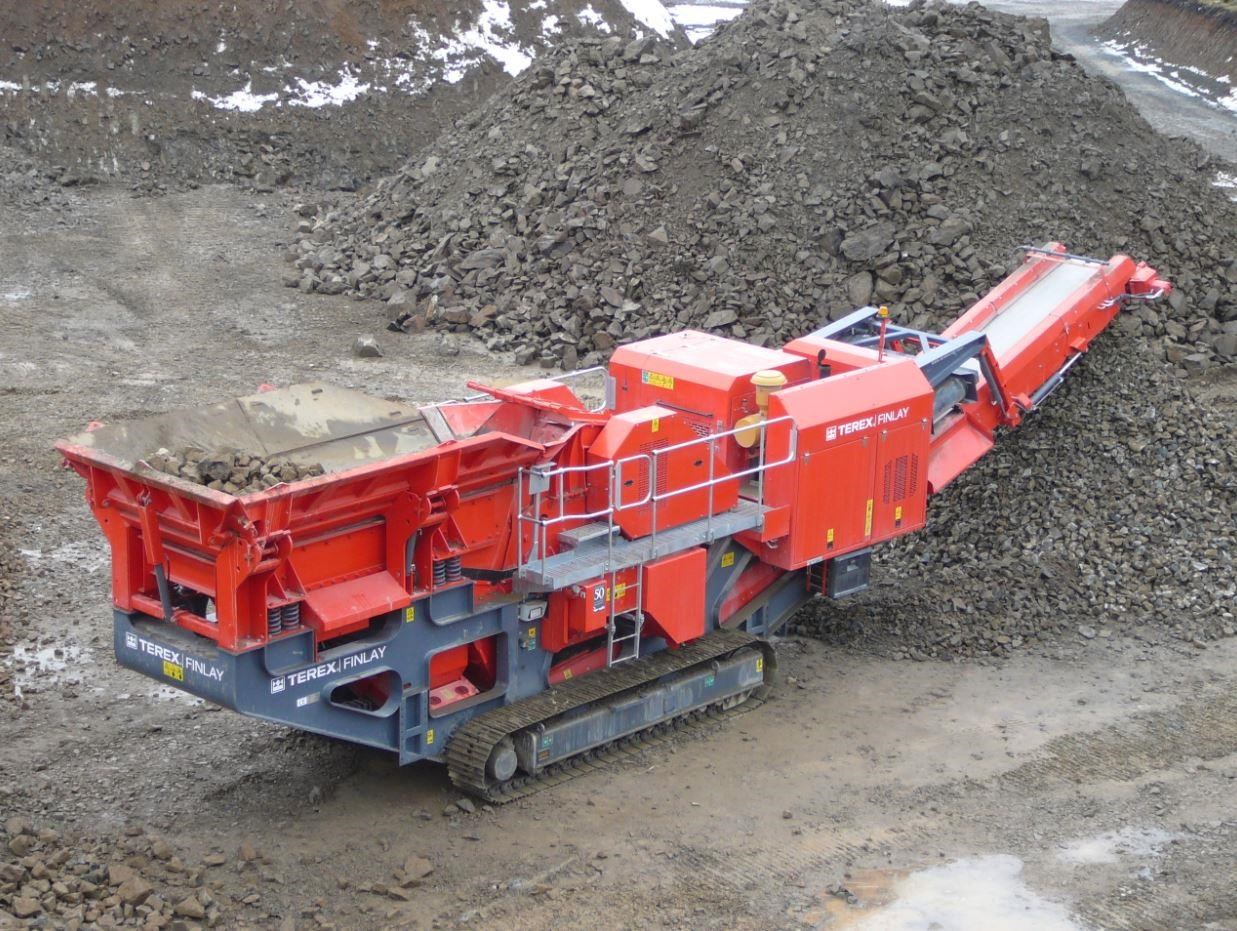

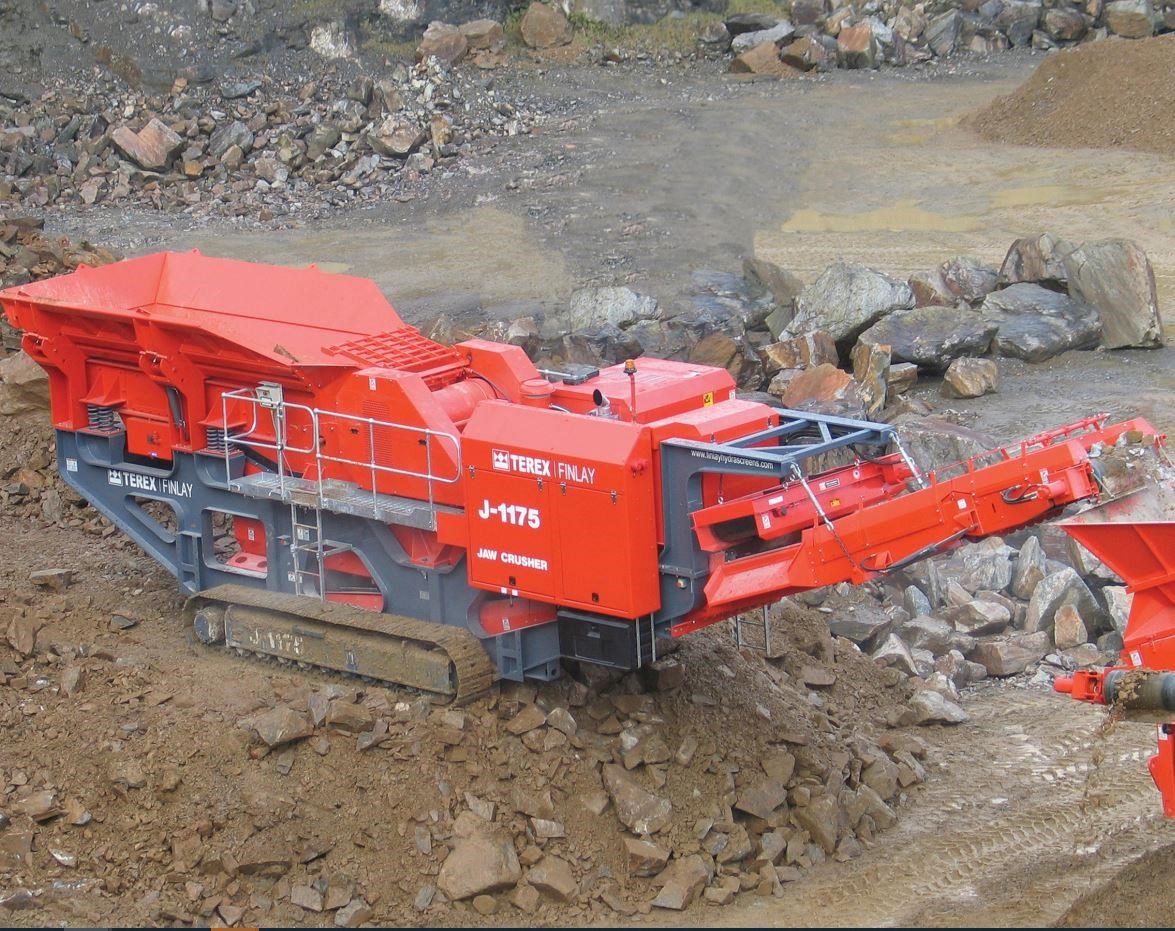

Terex Finlay J-1175 Jaw Crusher
For Sale or Hire - contact us today for a quote
The Terex Finlay J-1175 is a high performance tracked mobile jaw crusher. Incorporating the Terex Jaques JW42 jaw crusher and a heavy duty VGF feeder the Finlay J-1175 gives optimum production in a range of applications.
Its compact size, quick set up times, ease of transport and simple maintenance make the Terex Finlay J-1175 ideal for quarrying, mining, demolition and recycling applications.
HOPPER/FEEDER
- Hopper capacity: 9m³ (11.7yd³)
- Feed height VGF: 3.98m (12'11")
- Feed height prescreen 2.65m (13'6")
- Vibrating Grizzly Feeder (VGF): 1.05x4.25m
- VGF wire mesh aperture: 38mm (other options available)
- VGF speed range: variable, 450-850 rpm
JAW CHAMBER
- Terex JW42 chamber single toggle jaw crusher
- Inlet width: 1070mm (42")
- Inlet gape: 760mm (30")
- Drive arrangement: hydrostatic
- Reverse action for clearing blockages
CONVEYORS
MAINCONVEYOR
- Belt width: 1000mm (40")
- Working angle: 22 degrees
- Speed: 100m/min nominal
- Discharge height: 3.6m (11'10")
- Stockpile capacity: 69.4m3 (90.8yd3) @ 40°
- Optional Extended Stockpile Capacity: 95.2m3 (124.5yd3) @ 40°
POWER UNIT
- Tier 3 / stage 3A: Caterpillar Cat C9
- 261kW (350hp)
FOR MORE INFORMATION ON OUR EQUIPMENT FOR SALE AND/OR HIRE,
CONTACT FINLAYGROUP TODAY
J-1175 Available in New Zealand.
ENQUIRE NOW!
Terex Finlay J-1175 Jaw Crusher
For Sale or Hire - contact us today for a quote
The Terex Finlay J-1175 is a high performance tracked mobile jaw crusher. Incorporating the Terex Jaques JW42 jaw crusher and a heavy duty VGF feeder the Finlay J-1175 gives optimum production in a range of applications.
Its compact size, quick set up times, ease of transport and simple maintenance make the Terex Finlay J-1175 ideal for quarrying, mining, demolition and recycling applications.
HOPPER/FEEDER
- Hopper capacity: 9m³ (11.7yd³)
- Feed height VGF: 3.98m (12'11")
- Feed height prescreen 2.65m (13'6")
- Vibrating Grizzly Feeder (VGF): 1.05x4.25m
- VGF wire mesh aperture: 38mm (other options available)
- VGF speed range: variable, 450-850 rpm
JAW CHAMBER
- Terex JW42 chamber single toggle jaw crusher
- Inlet width: 1070mm (42")
- Inlet gape: 760mm (30")
- Drive arrangement: hydrostatic
- Reverse action for clearing blockages
CONVEYORS
MAINCONVEYOR
- Belt width: 1000mm (40")
- Working angle: 22 degrees
- Speed: 100m/min nominal
- Discharge height: 3.6m (11'10")
- Stockpile capacity: 69.4m3 (90.8yd3) @ 40°
- Optional Extended Stockpile Capacity: 95.2m3 (124.5yd3) @ 40°
POWER UNIT
- Tier 3 / stage 3A: Caterpillar Cat C9
- 261kW (350hp)
FOR MORE INFORMATION ON OUR EQUIPMENT FOR SALE AND/OR HIRE,
CONTACT FINLAYGROUP TODAY
