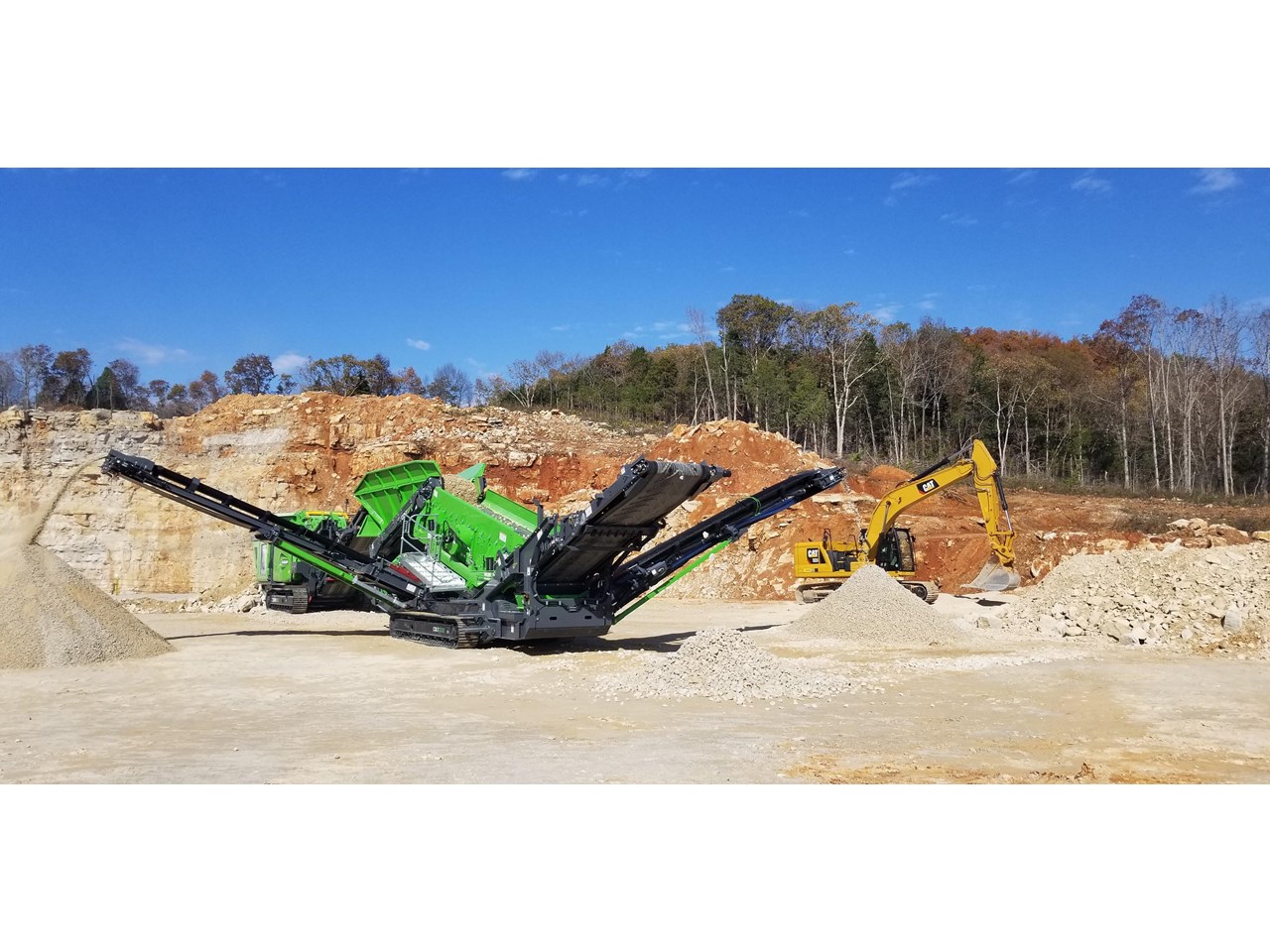

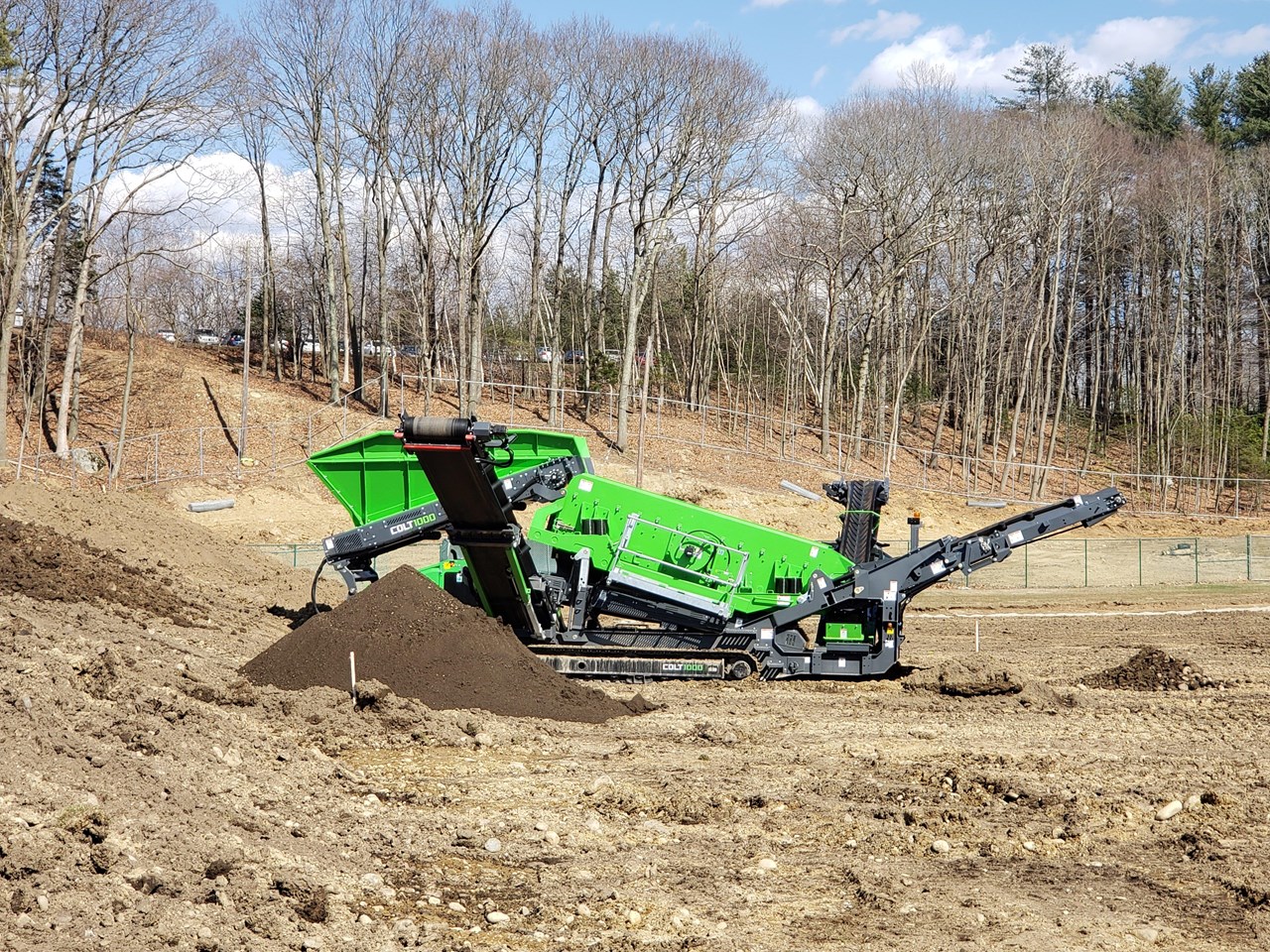

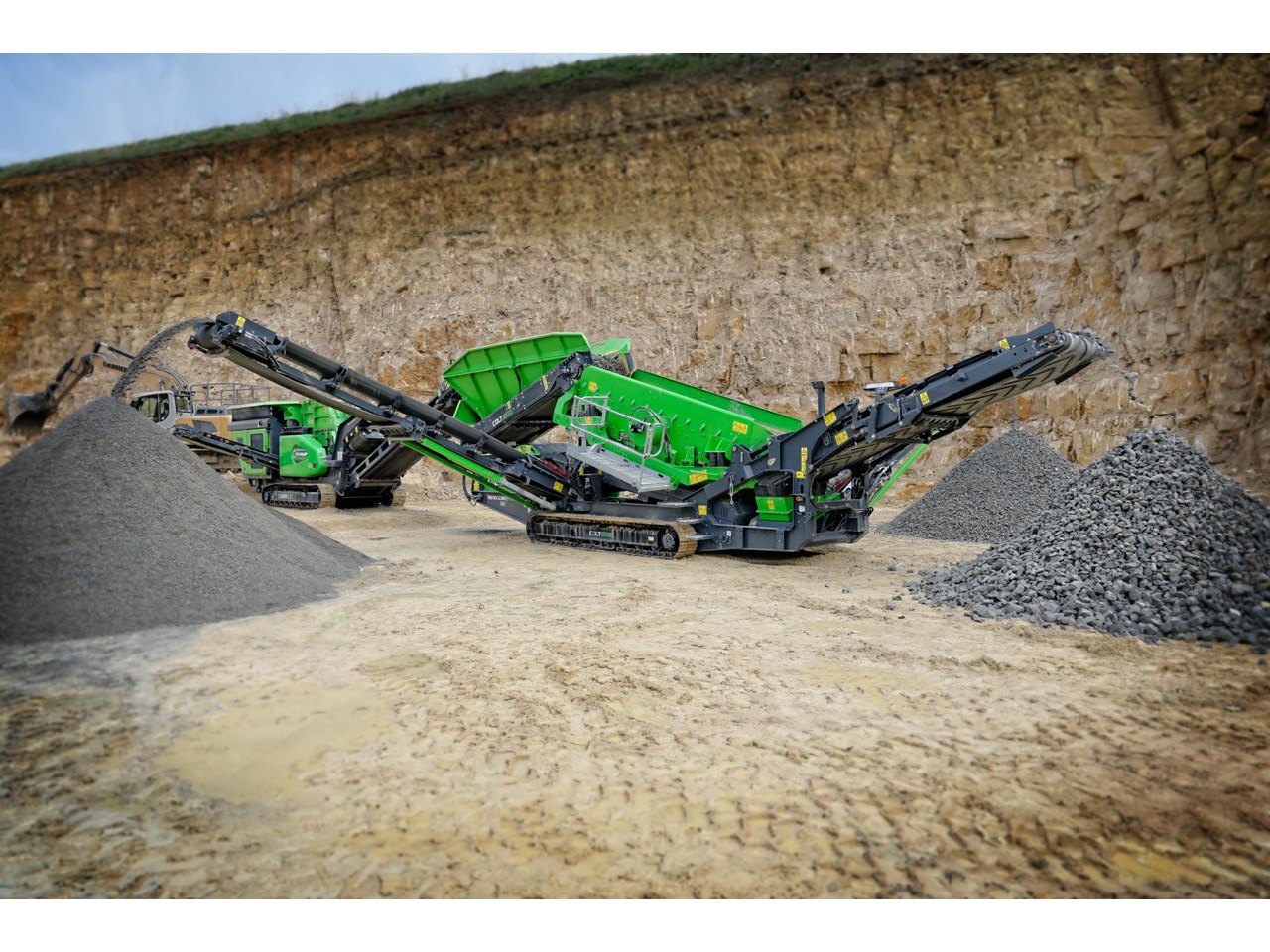

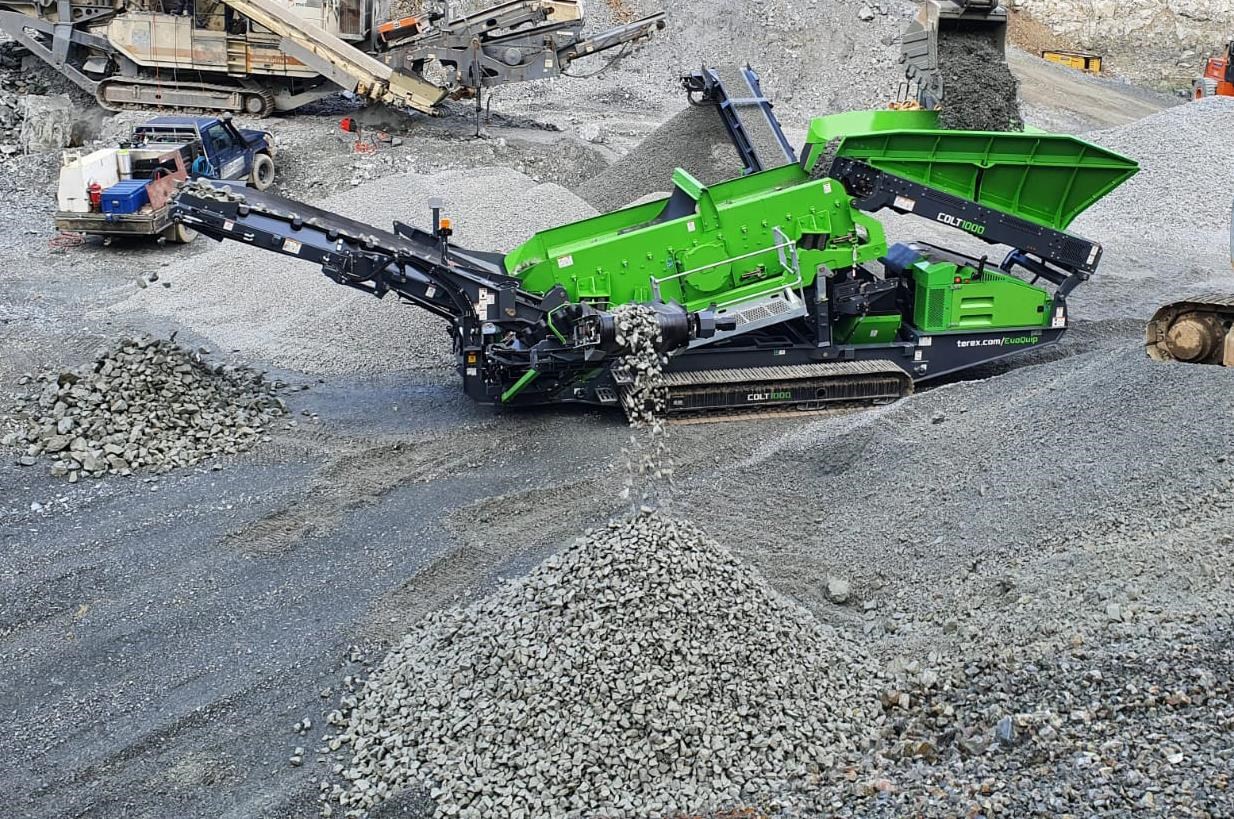

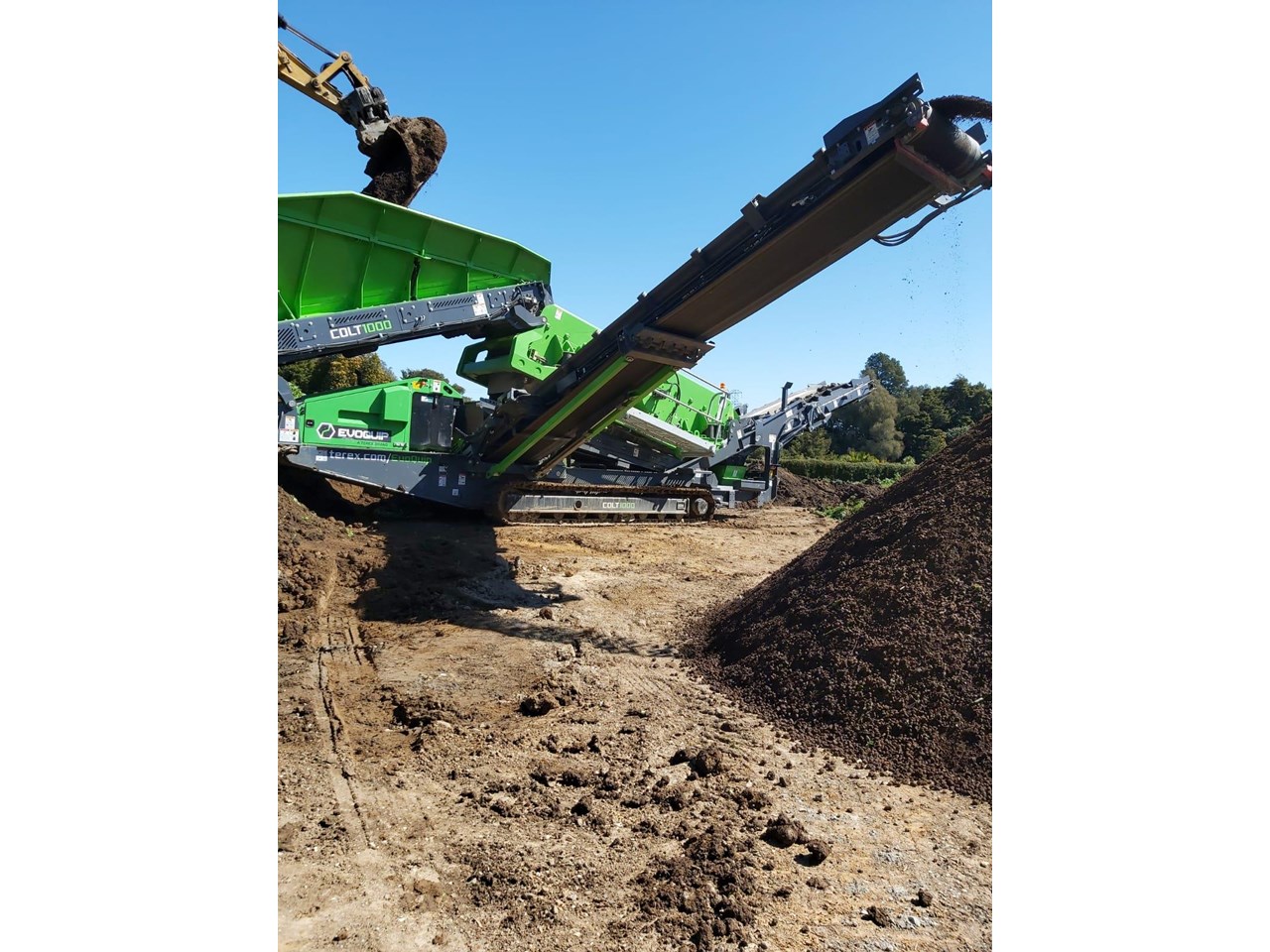

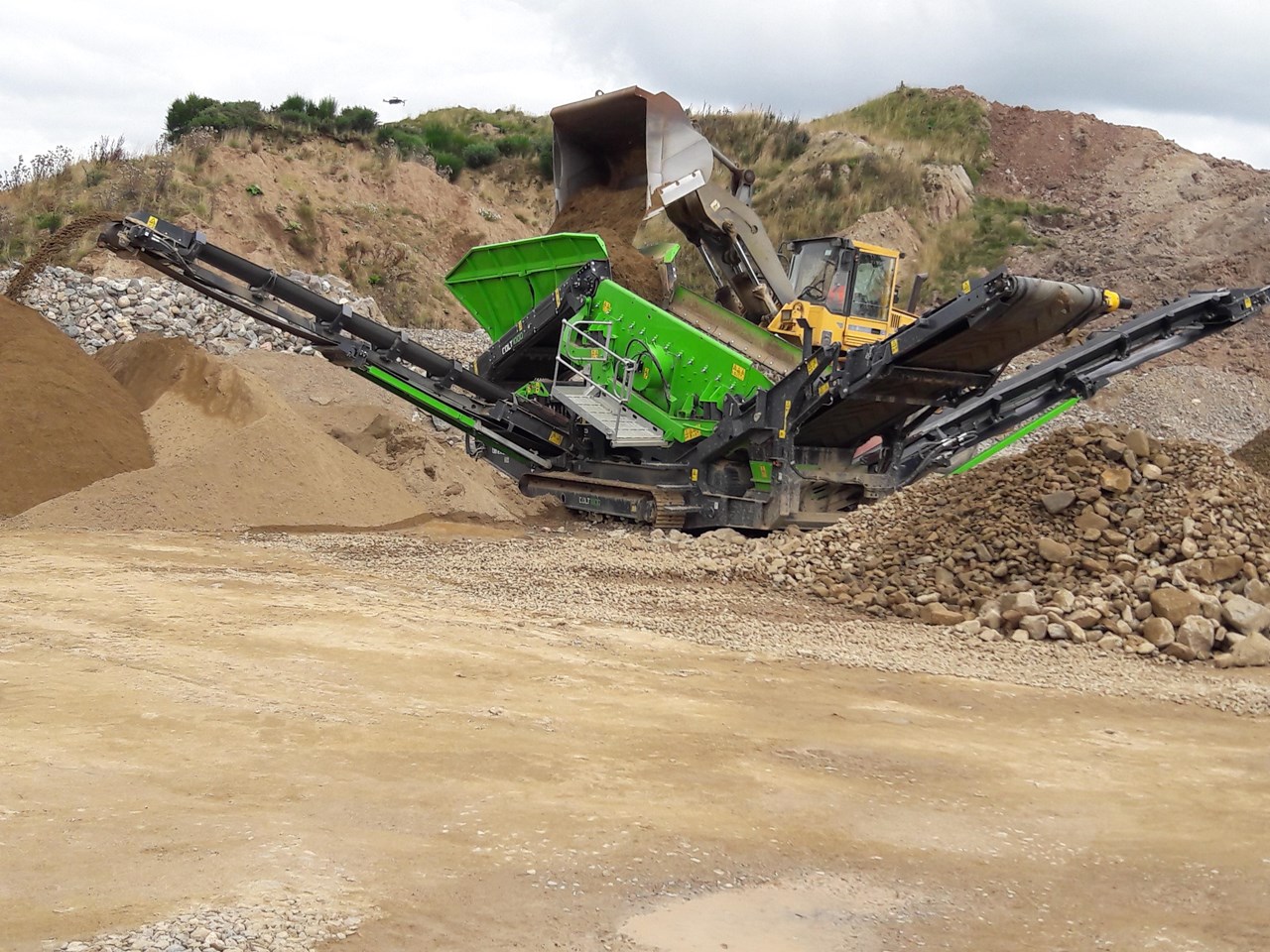

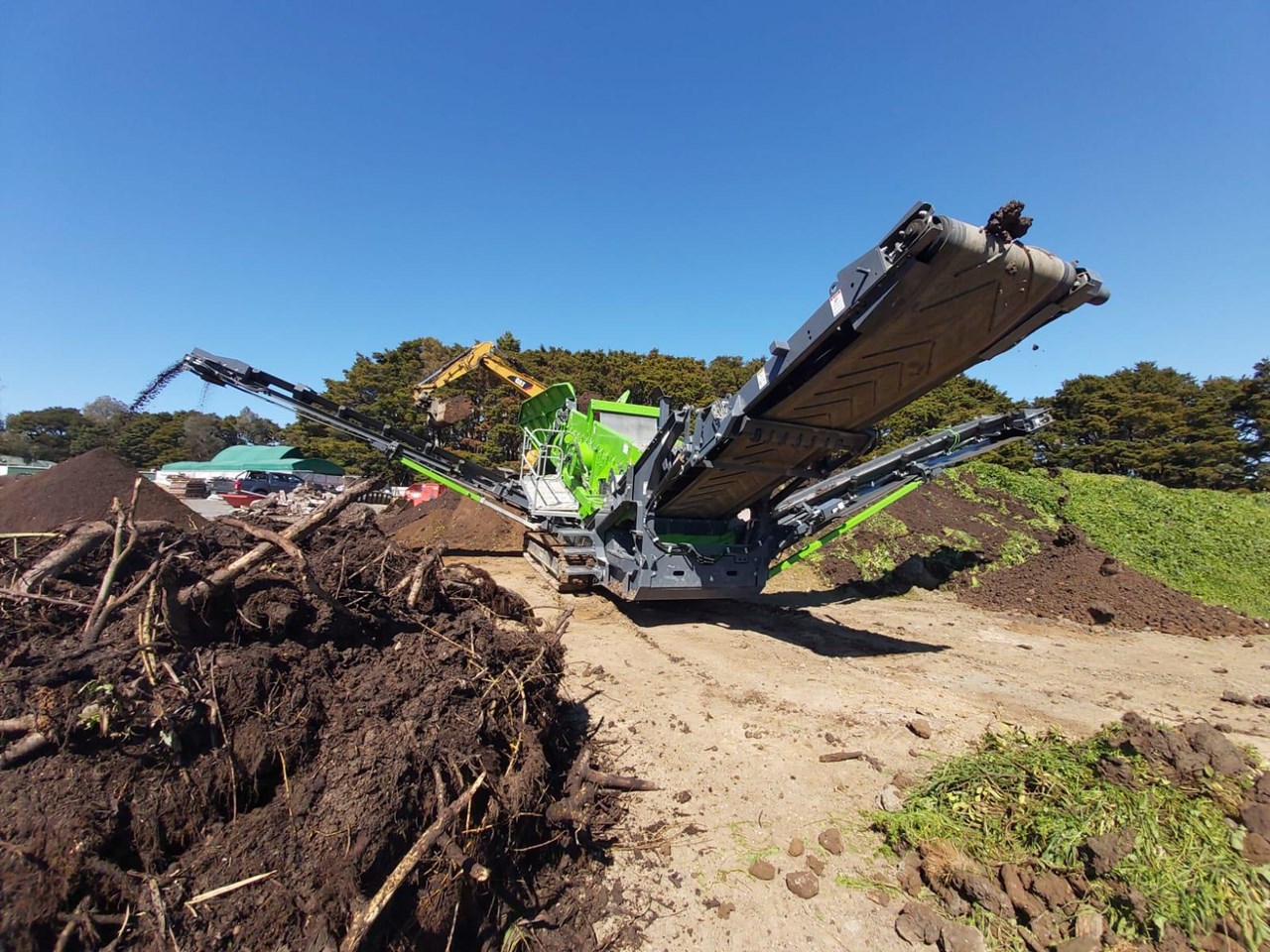

2023 EVOQUIP COLT 1000 1000
Features
Title | 2023 EVOQUIP COLT 1000 1000 |
Type | Screening and Crushing |
Sub Type | Screening - Crushing |
Class | Scalping Screen |
Make | EVOQUIP |
Model | COLT 1000 |
Series | 1000 |
Year | 2023 |
Sale Price | $390,000 + GST $448,500 incl. GST |
Listing Type | New |
Stock Number | 2023-COLT1000-NEW |
RefCode | TA1037318 |
Engine | Tier 4 Final / Stage lllB: CAT C3.4 engine (55kW / 74hp @2300rpm |
Engine Power - kW | 55kW |
Shaft Speed - rpm | 2300rpm |
Capacity - tonnes/h | 360 TPH |
Number of Decks | Double deck screen |
Screen Size (L x W) - mm | 4.1m (136) x 1.22m (4) Double deck screen |
Conveyor Belt Width - mm | 1000mm (40) Wide collection conveyor with SCS scraper |
Feed opening size - mm | Variable screen angle |
Discharge Height - mm | 1050mm (41) Wide oversize conveyor with 3.2m (104) discharge |
Adjust Range of Discharge Opening - mm | 1100mm (44) wide |
Hopper Size - m3 | 5m3 (6.5yd3 ) Hopper Capacity - Variable speed |
Length - mm | Transport Length 36' - 11m |
Width - mm | Transport Width 7' 5" - 2.5m |
Height - mm | Transport Height 8' 4" - 3.1m |
Description
- PRICE: $390,000 + GST
- Pricing is based on current exchange rates and may fluctuate.
SCREEN
- 4.1m x 1.22m (13'6" x 4') double deck screen
- Variable screen angle
- Wide range of screen media
- Top deck - Bofor deck, fingers, punch plate, 3D punch plate and mesh
- Bottom deck - Mesh and fingers
POWER UNIT
- Tier 4: CAT C3.4 engine 55kW / 74Hp 2300 RPM
CONVEYORS
- 1000mm (40") wide collection conveyor with SCS scraper
- 800mm (31") wide fines conveyor with 3.9m (12'9") discharge
- 650mm (26") wide midgrade conveyor with 3.6m (11'10") discharge
- 1050mm (41") wide oversize conveyor with 3m (9'10") discharge
- Configurable layout and ability to convert to 2 way split
- Variable speed on fines, midgrade and oversize as standard
POA - with MSC Ltd
