EVOQUIP COLT 1000

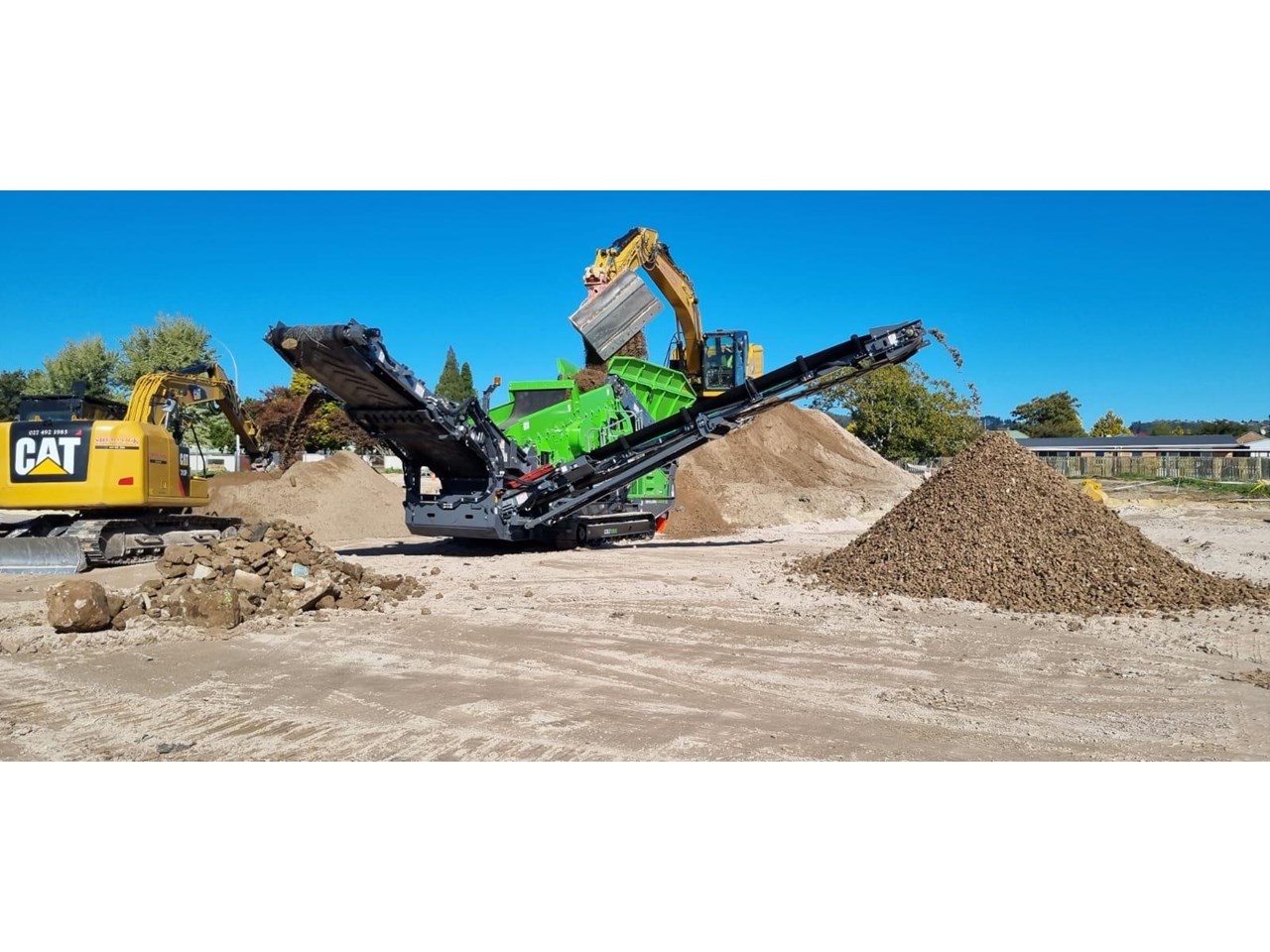

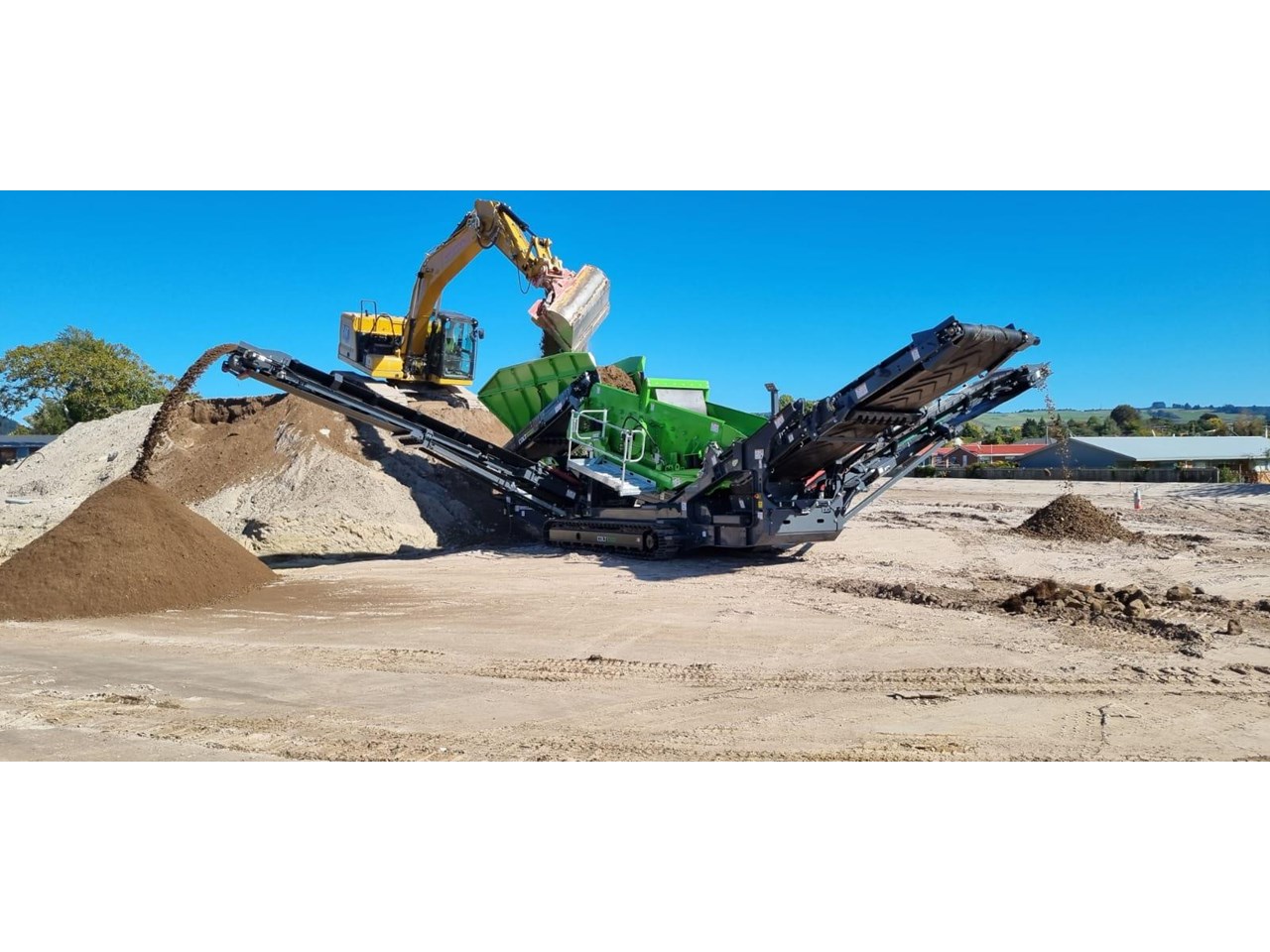

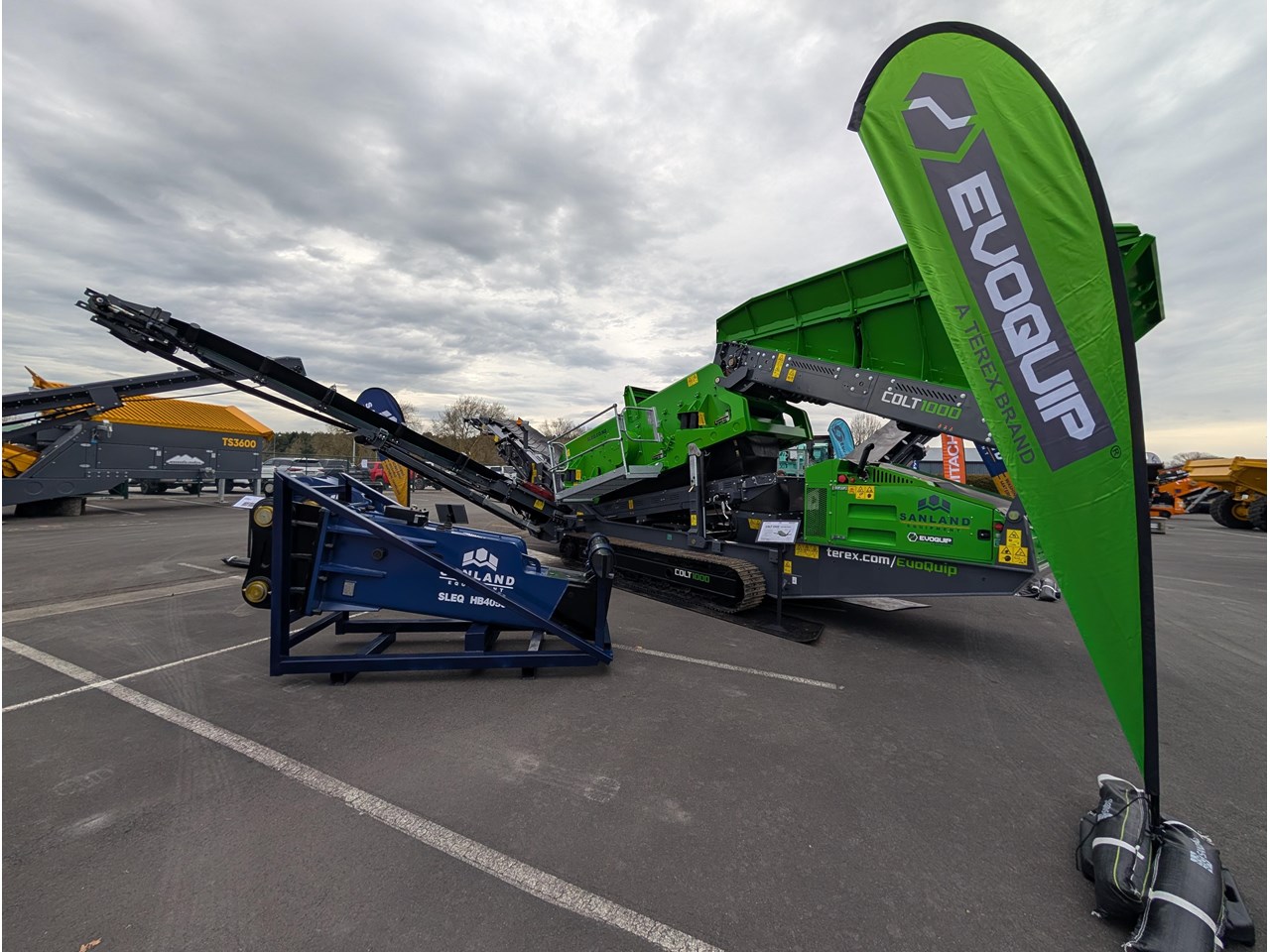

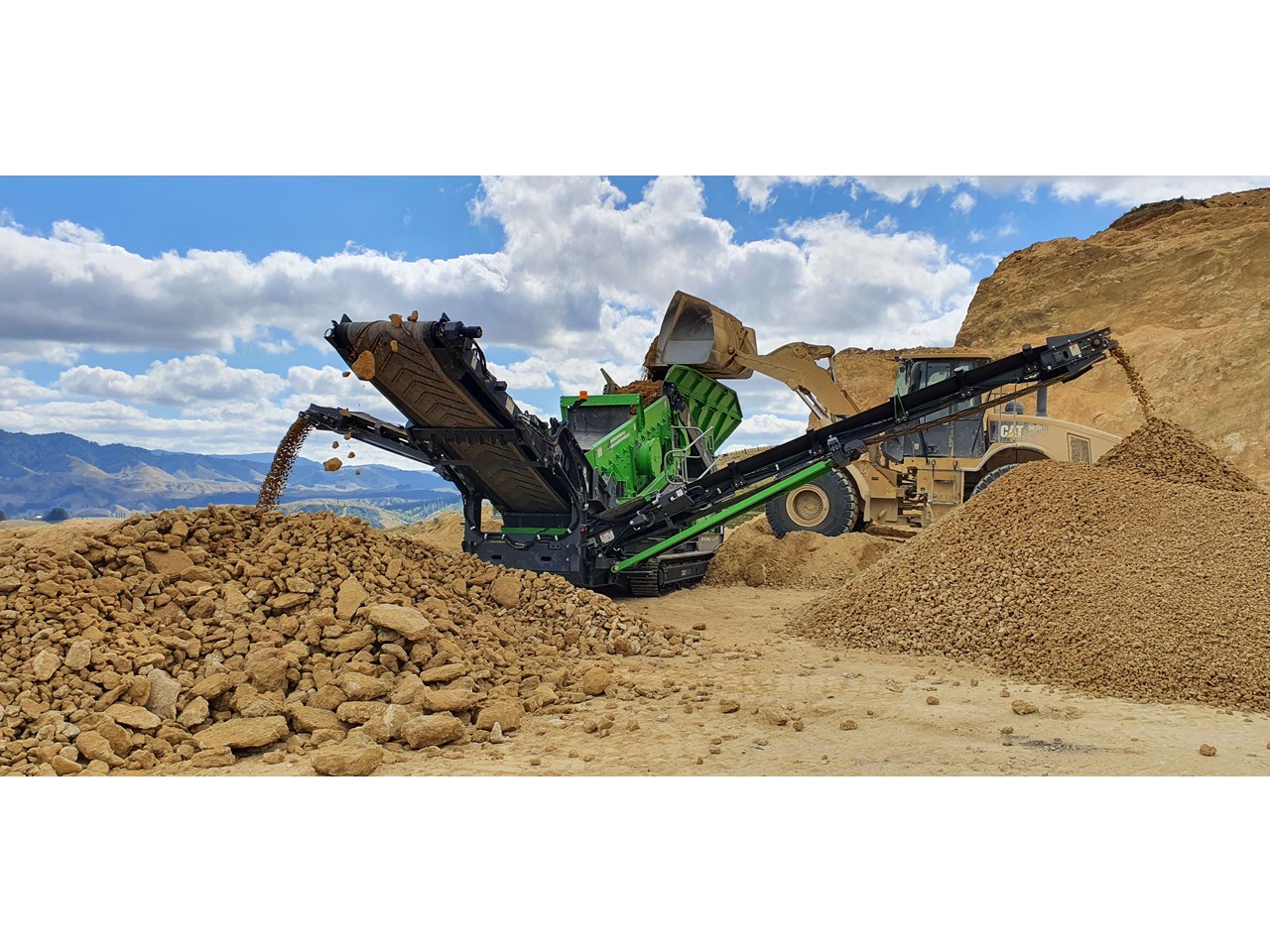

The EvoQuip Colt 1000 is a highly adaptable, high-capacity mobile scalping screen designed to handle both heavy-duty scalping and precision screening applications with ease. Retaining EvoQuips compact transport dimensions while delivering serious output, the Colt 1000 is ideal for quarrying, recycling, sand and gravel, demolition waste, and bulk material processing.

With its aggressive double-deck screen, tall stockpile heights, configurable conveyor layout, and intuitive controls, the Colt 1000 stands out as a versatile, high-performance solution for demanding applications.

Key Features
-High output capacity up to 360 tph
-Compact footprint with excellent mobility
-2-way split conversion capability
-Variable speed feeder, fines, midgrade & oversize conveyors as standard
-High-energy aggressive screening action
-Variable screen angle and variable screen throw
-Wide range of screen media options
-Reversible side conveyors and configurable discharge
-Tall discharge heights for all conveyors
-Quick setup time
-Intuitive, easy-to-operate control system
-Ideal for urban sites and restricted access locations
-Easy to transport between sites

Technical Specifications
-Hopper capacity: 5 m³ (6.5 yd³)
-Hopper width: 1,000 mm (40")
-Variable speed feeder
-Screenbox size: 4.1 m (136) x 1.22 m (4)
-Configuration: Double deck, Variable screen angle

Top deck options:
-Bofor deck
-Fingers
-Punch plate
-3D punch plate
-Mesh

Bottom deck options:
-Mesh
-Fingers
-Output

Production capacity: Up to 360 tph (396 US tph)

Power Unit
-Engine: CAT C3.4
-Power: 55 kW (74 hp) @ 2,300 rpm
-Designed for simple operation and fuel efficiency

Conveyors
-Collection conveyor: 1,000 mm (40") wide, with SCS scraper
-Fines conveyor: 800 mm (31") wide, 3.9 m discharge height
-Midgrade conveyor: 650 mm (26") wide, 3.6 m discharge height
-Oversize conveyor: 1,050 mm (41") wide, 3.0 m discharge height

Weight
-Operating weight (Tier 4 standard machine): 20,750 kg

Sanland Equipment is the exclusive dealer for Terex EvoQuip in New Zealand and the Pacific Islands. We back every machine with industry-leading after-sales parts and service support, ensuring you receive not only world-class equipment, but also long-term reliability, maintenance, and technical backup. Viewings available at our site in Papakura, Auckland
