DITCH WITCH HB5058
Features
| Title | DITCH WITCH HB5058 |
| Type | Trenchers |
| Sub Type | Pipelayers |
| Make | DITCH WITCH |
| Model | HB5058 |
| Sale Price | $125,000 200000+ |
| Listing Type | Used |
| RefCode | DIY1283695 |
Description
COMPACT AND EFFICIENT. The HB5058 gives you up to 50 tons
of pulling power in a compact, highly efficient bursting system.
Its simple to set up, easy to operate and leaves a small footprint.

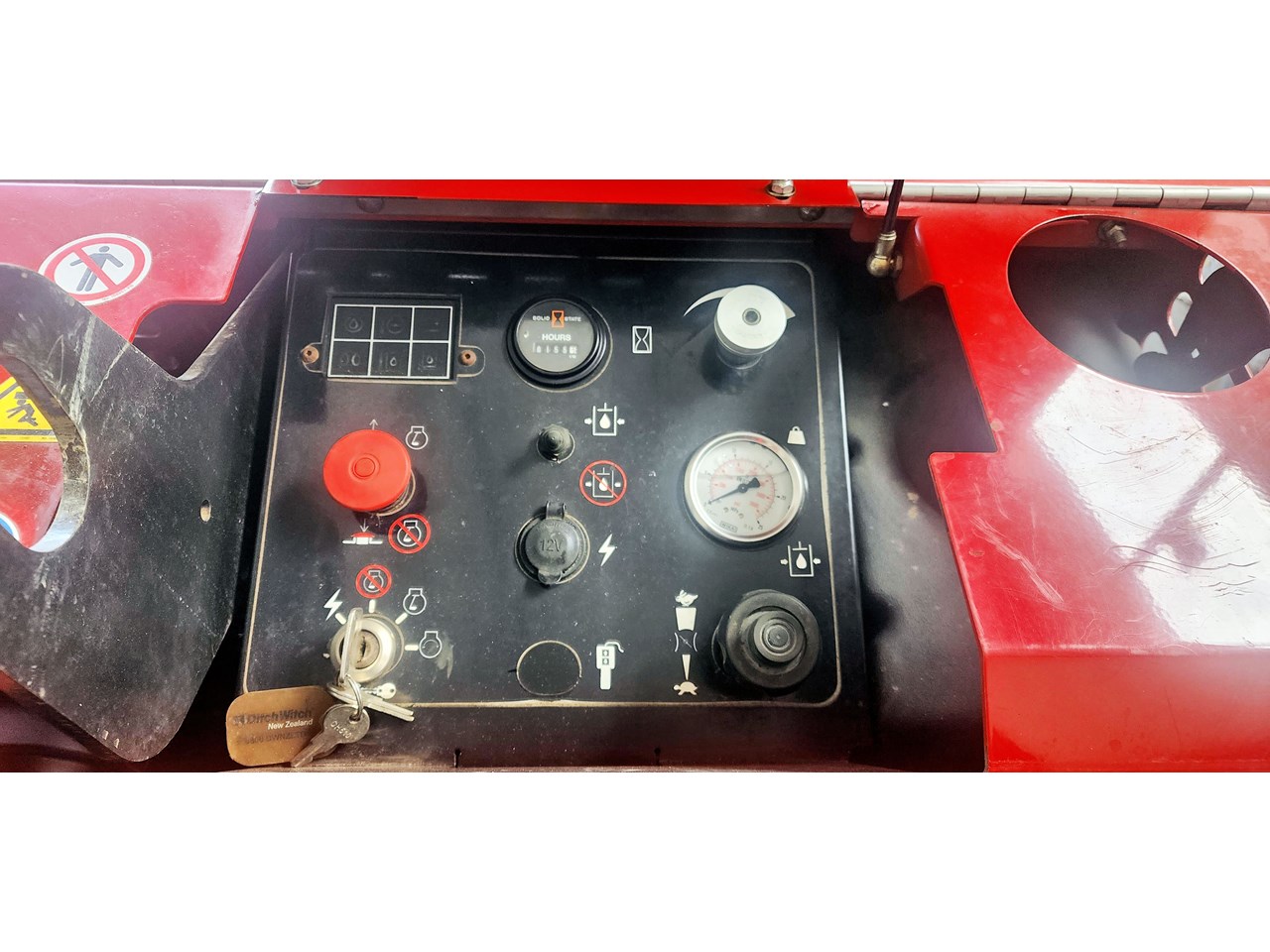

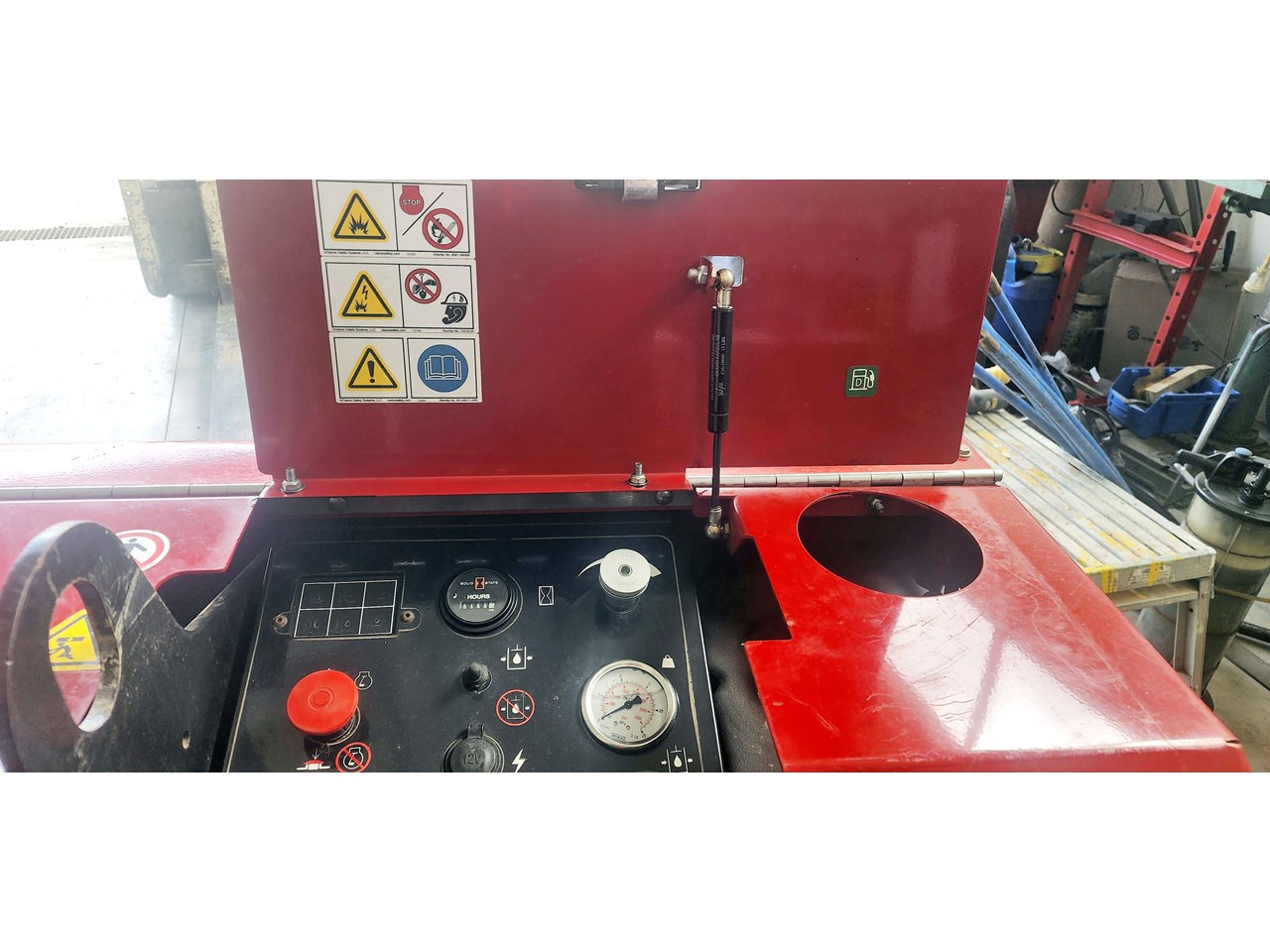

Its quick replacement jaw inserts, onboard pressure gauges and
auto rod grip-and-release make the pipe bursting operation as
simple and efficient as it can possibly be.
POWER FOR PRODUCTIVITY. The HB5058 system was designed
for productivity. In average soil conditions, it can complete a
400-foot job in as little as two hours from rod payout to pullback.

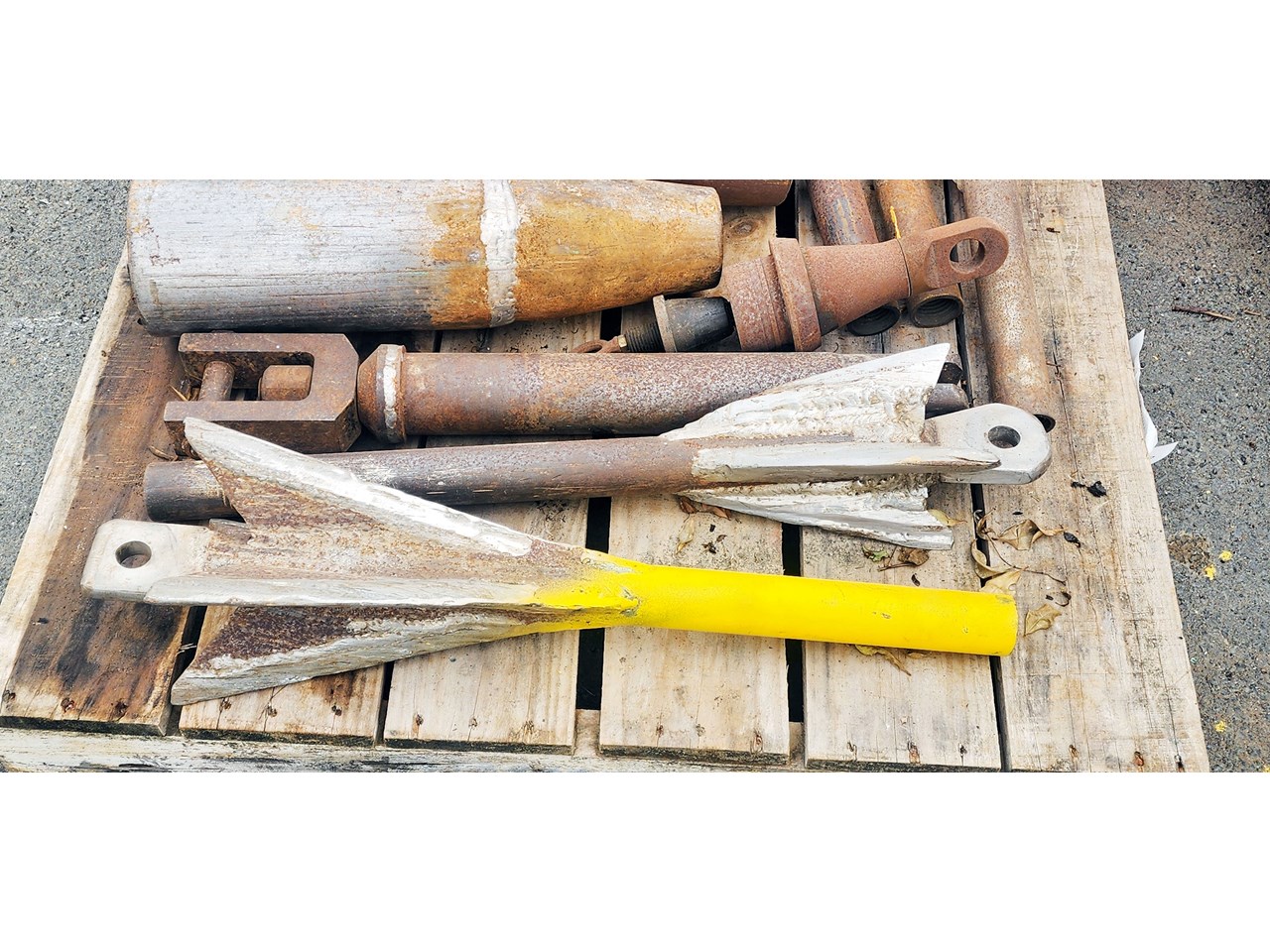

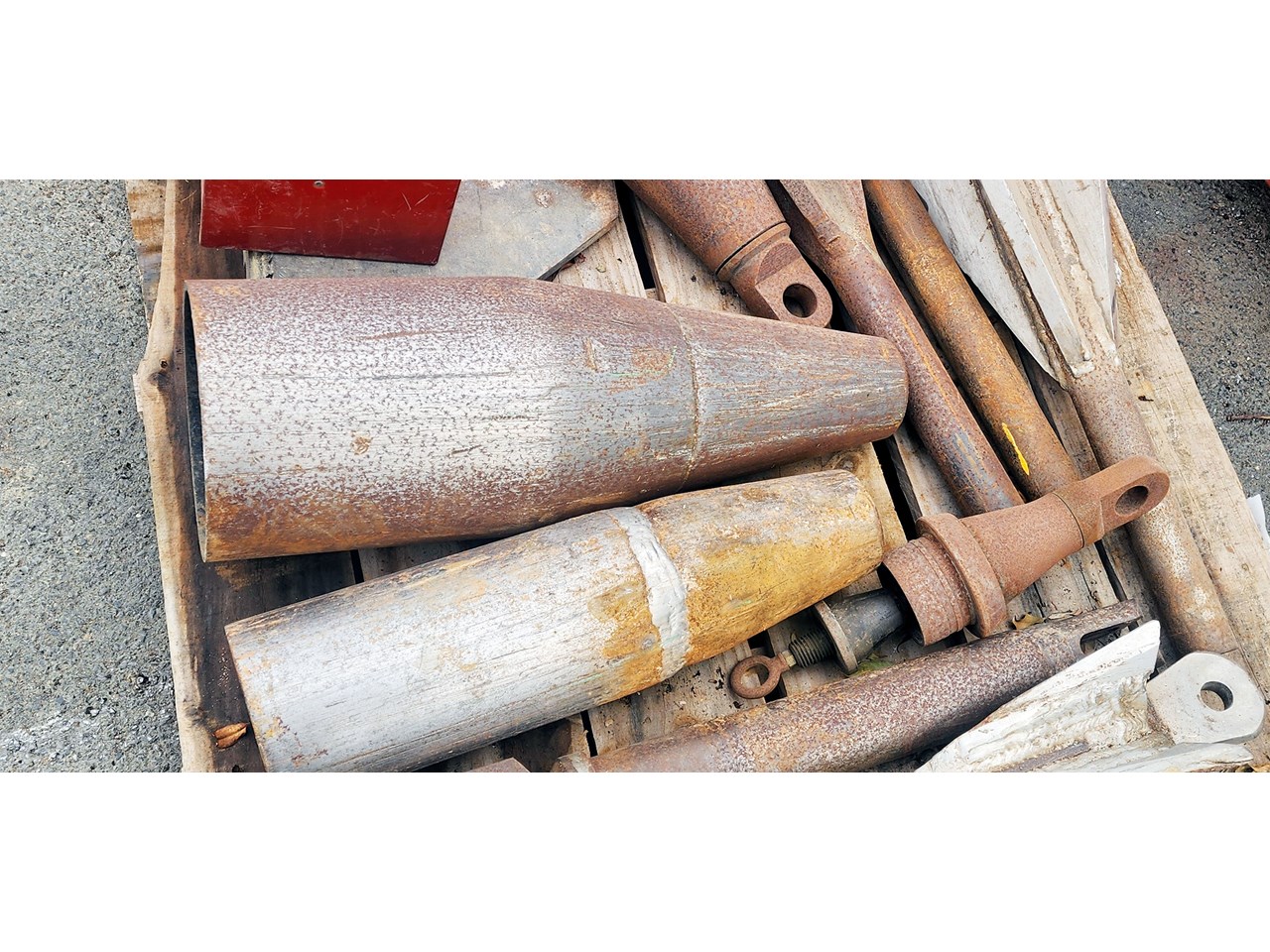

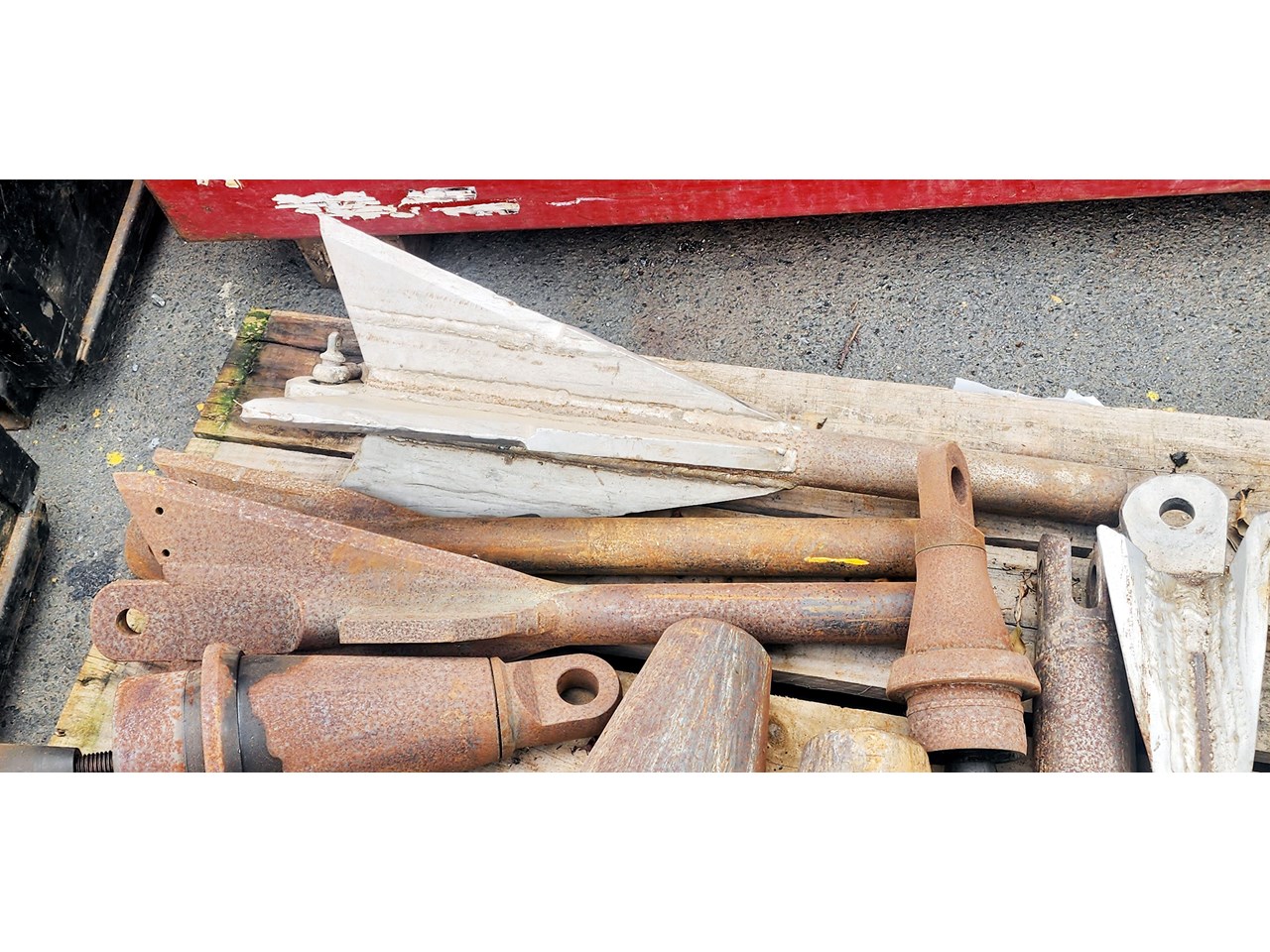

Pin joints speed up tooling connections and slitting accessories
are available so you can take on even the toughest ductile iron
and steel pipes.

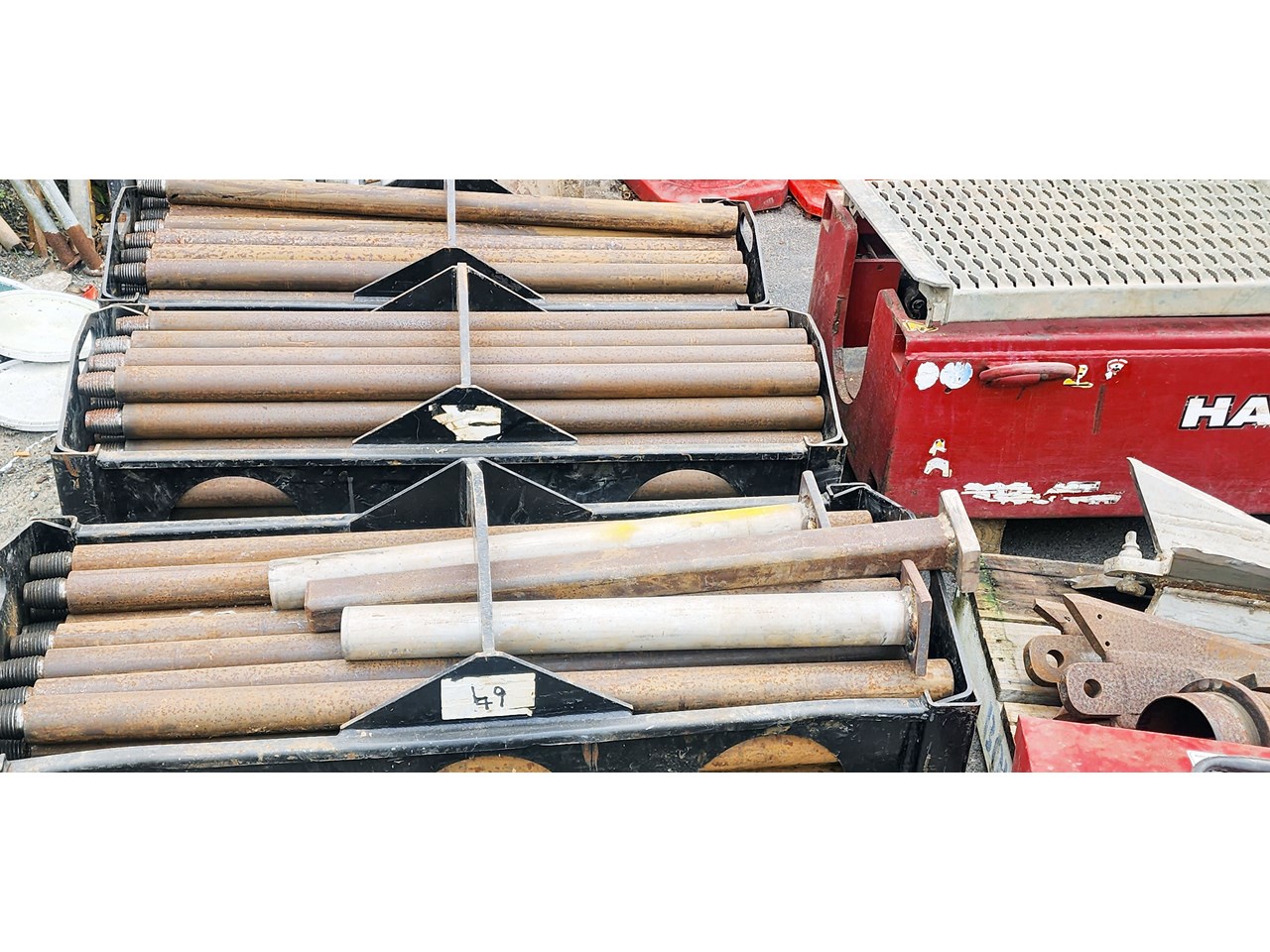

TOUGH & LOW WEIGHT RODS. Our low-weight, heat-treated alloy
pull rods feature an API-style joint. The proven joint design has
no problem taking the thrust encountered as you push around a
sweeping bend, through encrusted and collapsed lines and all the
way to the end of your longer bursting runs.
SIGNATURE SUPPORT. You need more than just a manufacturer for
your trenchless operations you need a partner. At HammerHead®
Trenchless, it is our mission is to help you succeed on every job.
Our customer service is available 24/7, so you always get your
answers when you need them. Our world-class, on-site training
keeps your crews confident and efficient. And when your job calls
for a custom solution, our team of industry experts is ready to
help. At HammerHead Trenchless, the most important feature on
all of our products is the signature support that comes with it.
Pipe replacement range in (mm) 4 8 (100 200)
Max. pulling force tons (t) 50 (45.4)
Rig Size L/W/H in (m) 65/22/13 (1.65/0.56/0.33)
Minimum Pit Size L/W/H in (m)* 85/22/7 (2.16/0.56/0.18)
Weight lb (kg) 928 (421)
Maximum Shuttle Speed** 22 seconds

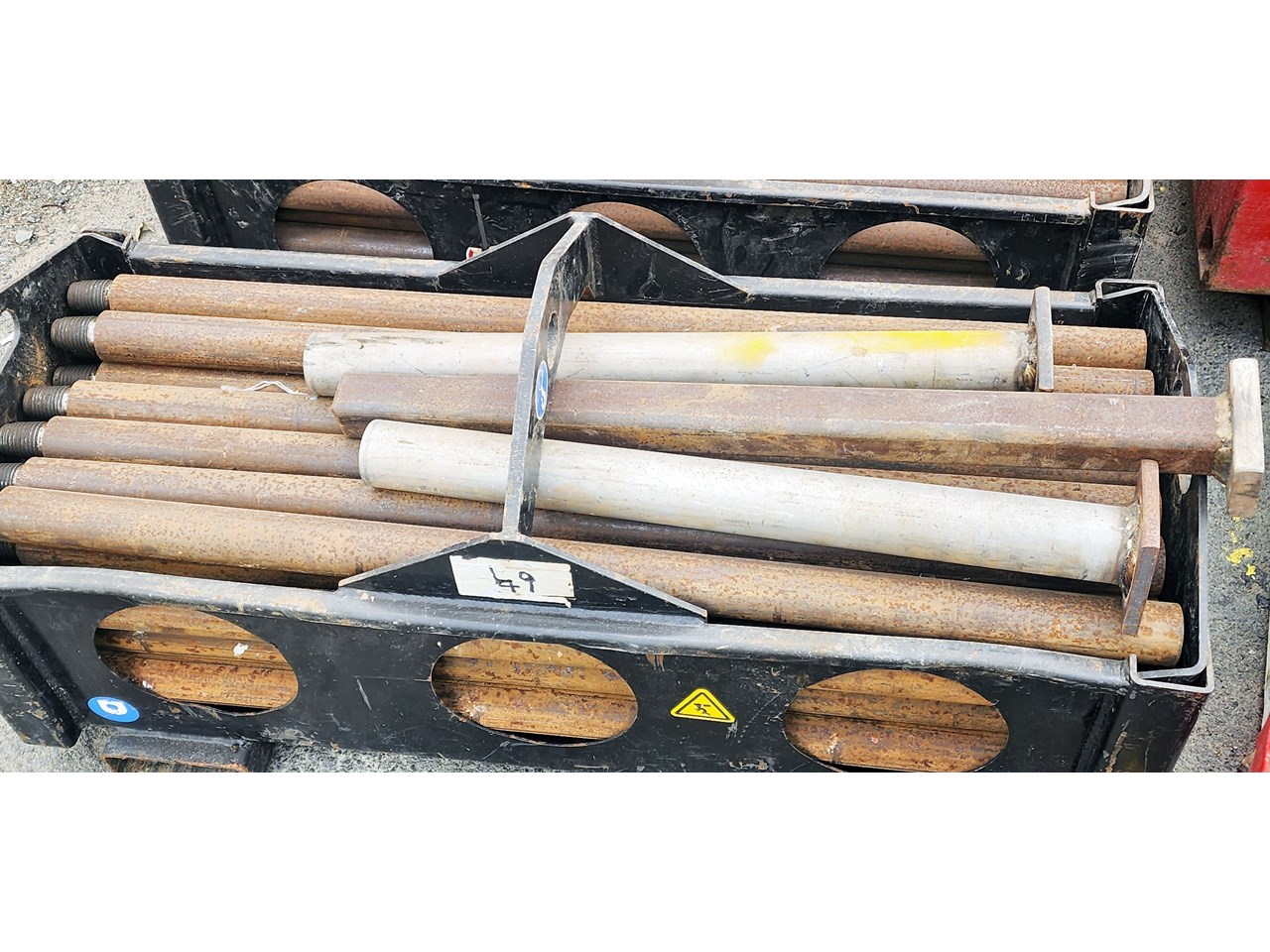

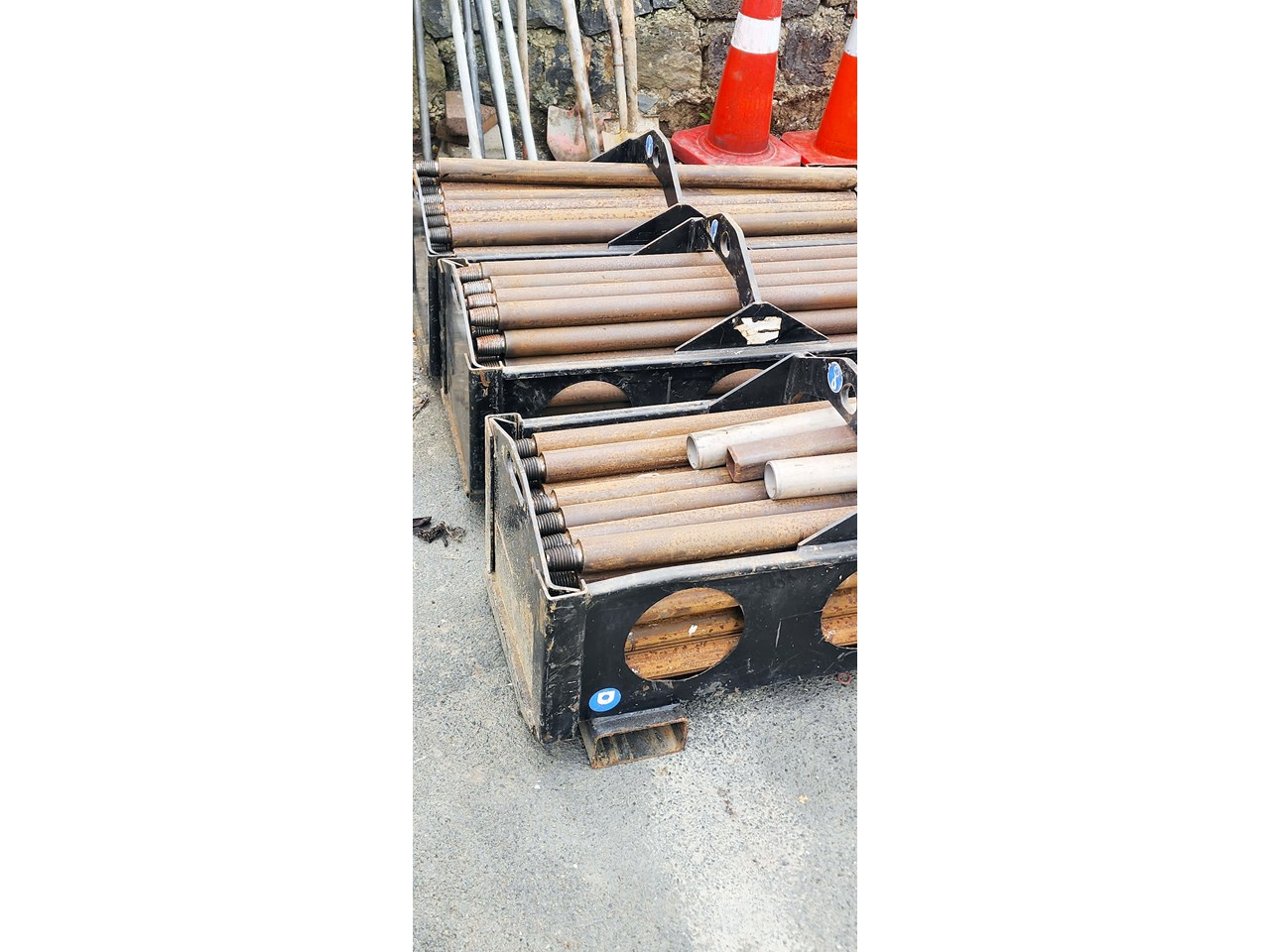

RODSRod Weight lb (kg) a. 35.0 (15.9); b. 17.2 (7.8)
Rod Diameter in (mm) a. 2.00 (50); b. 1.38 (35)
Rod Length in (cm) a. 39.38 (100); b. 39.38 (100)

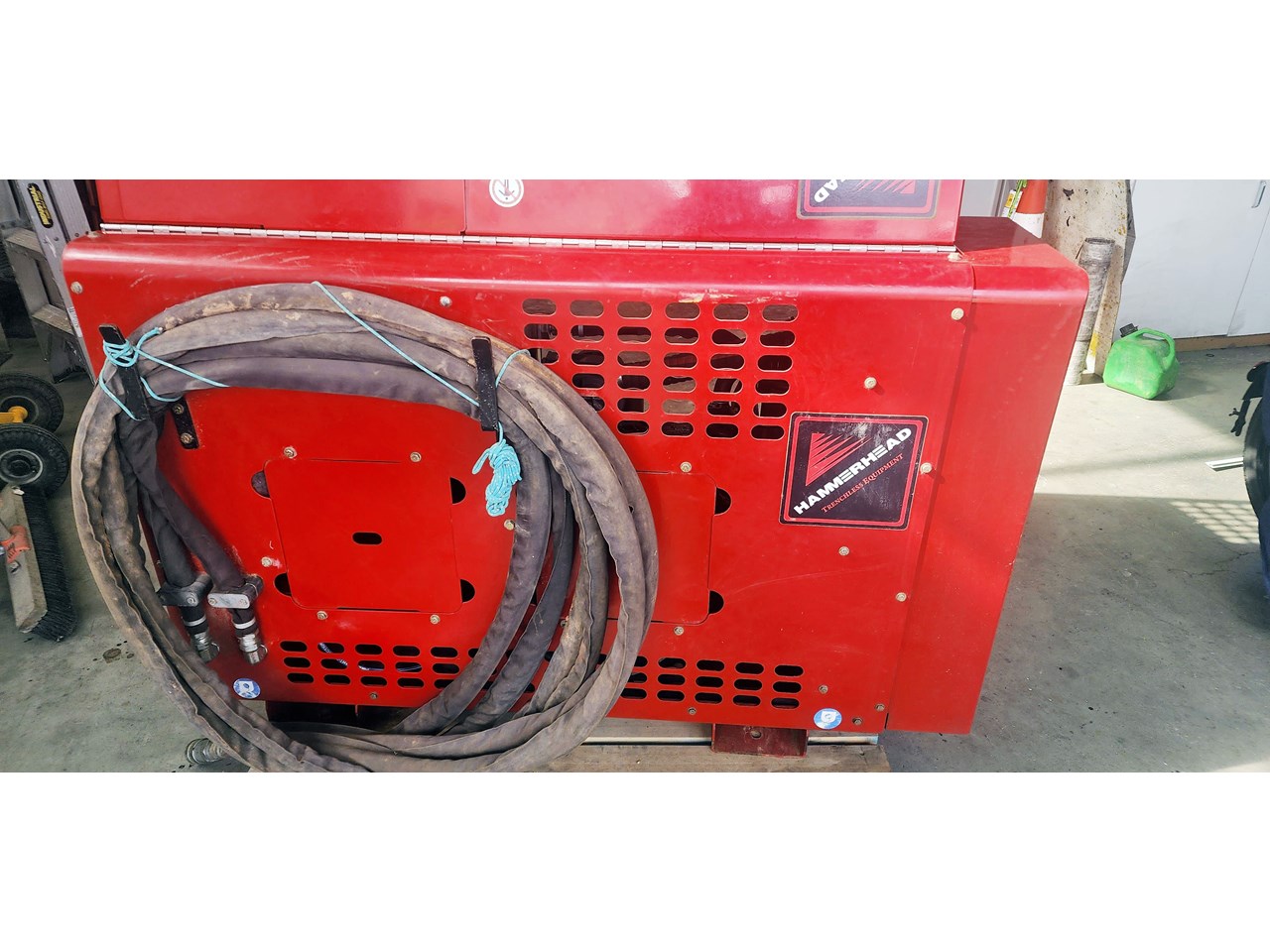

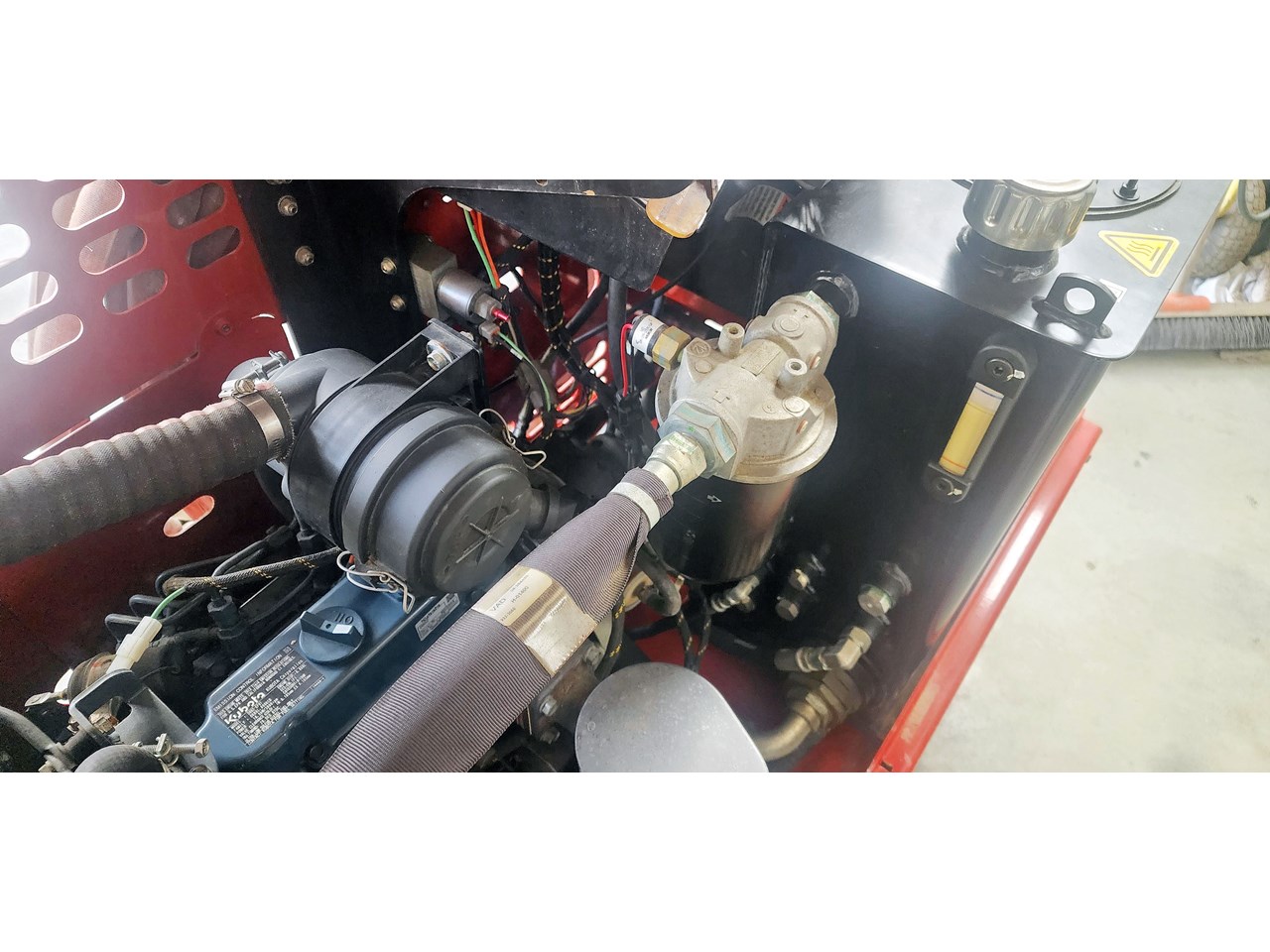

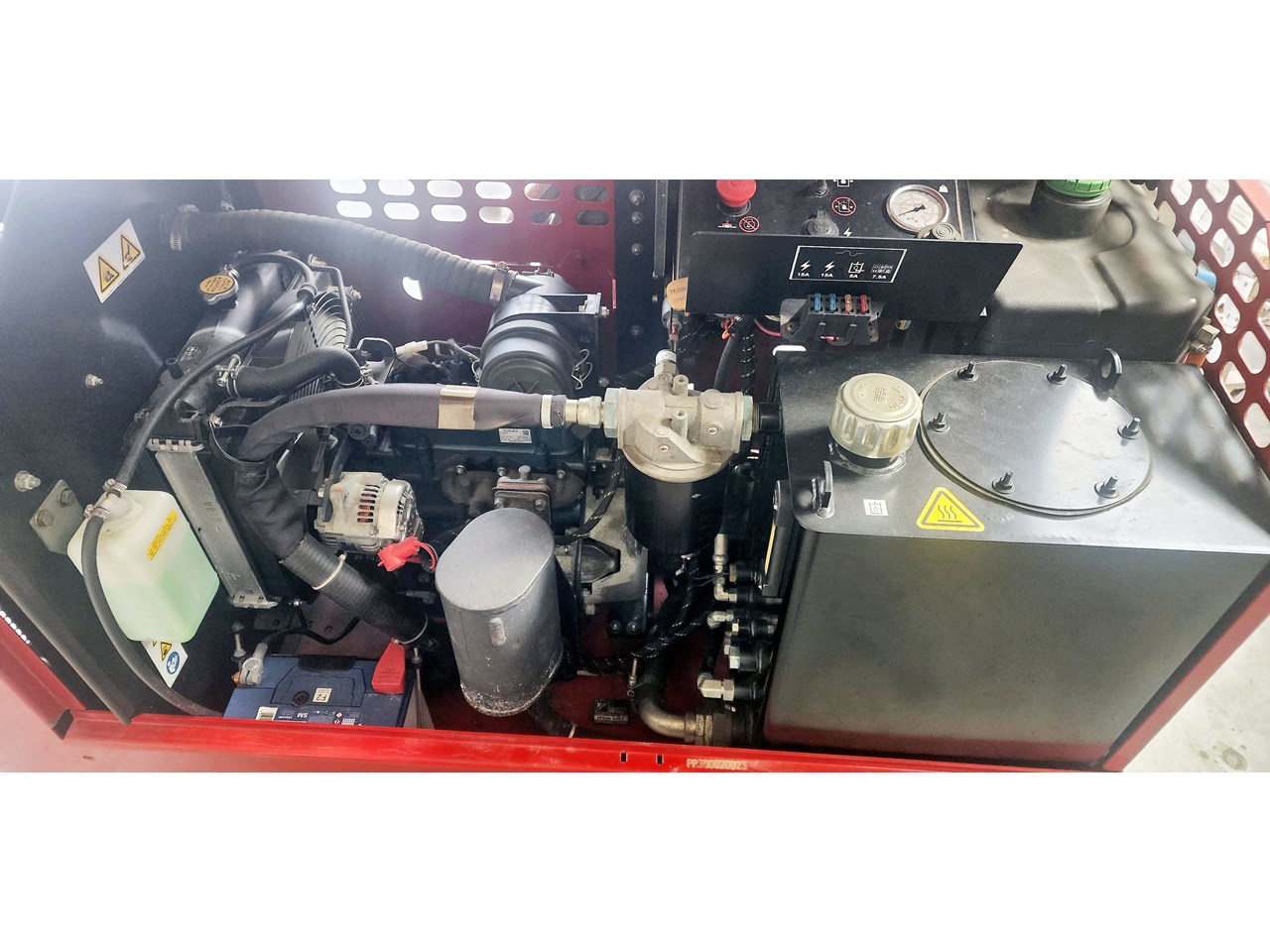

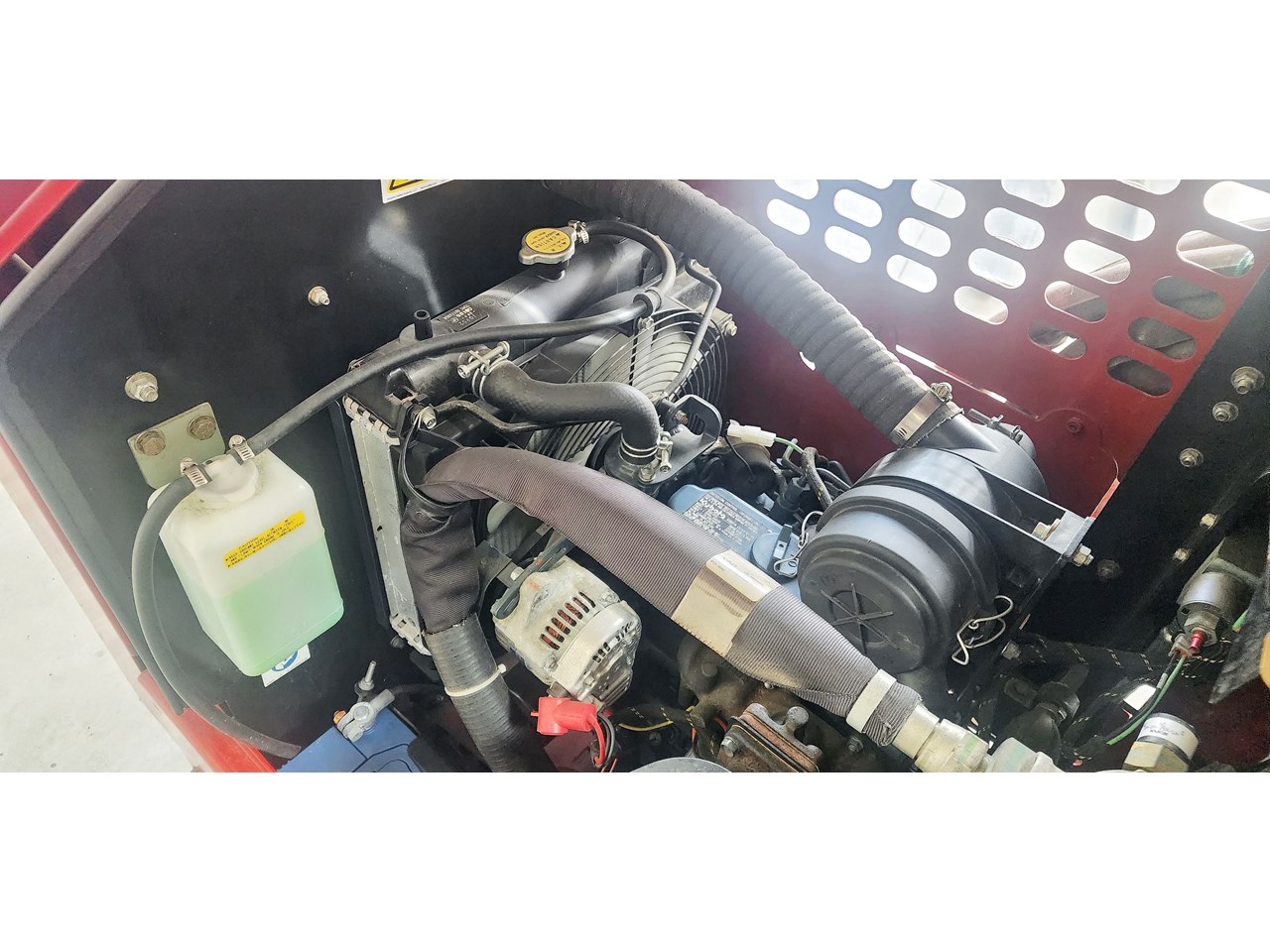

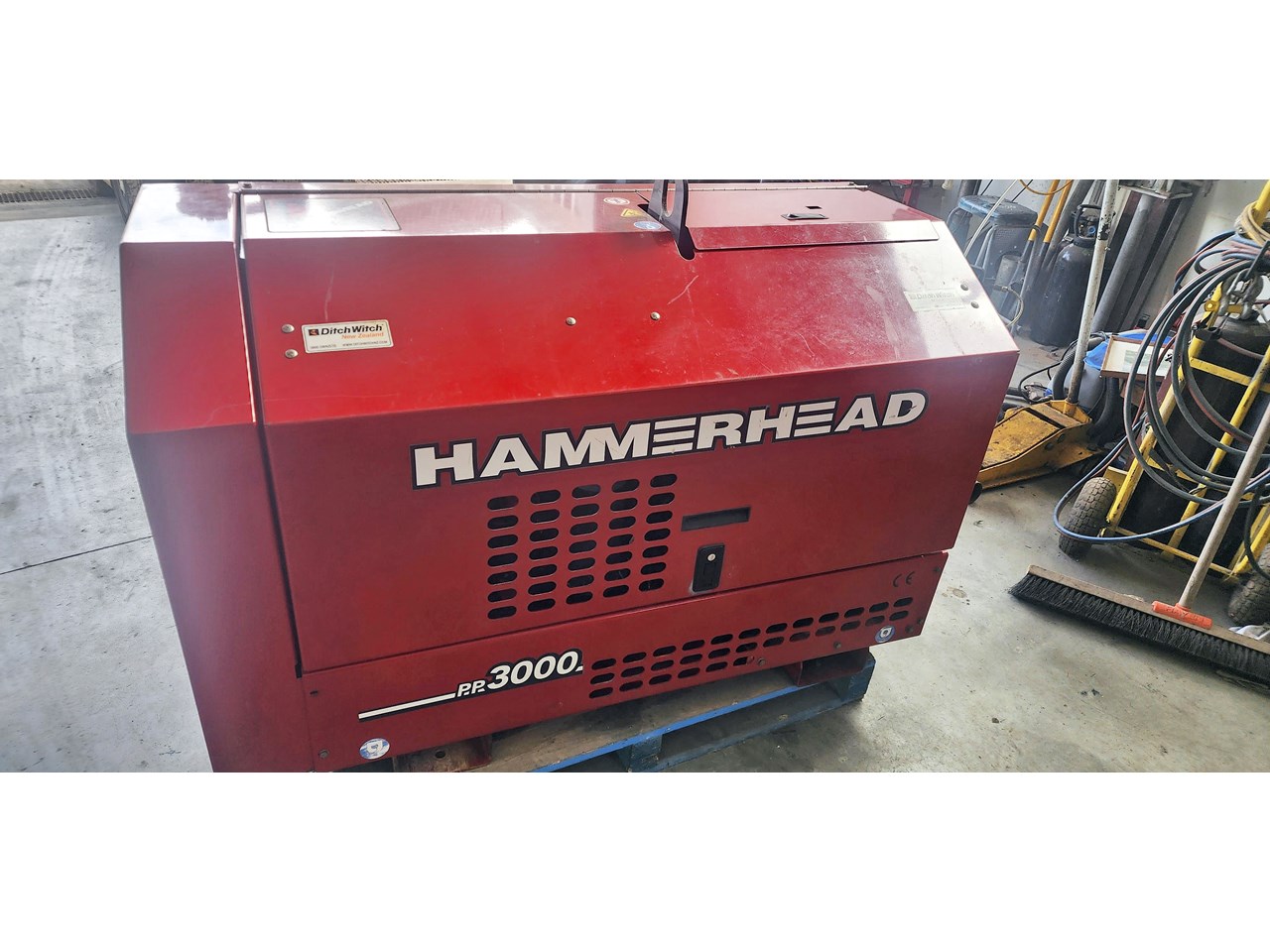

Engine Manufacturer Kubota
Cooling System Water Cooled
Engine HP (kw) 24.8 (18.5)
Pump Flow gpm (L/min) 26.8 (101) @ 3,000 RPM
Hydraulic Pressure Max psi (bar) 3,000 (207)
Rig Size L/W/H in (m) 57.7/30.4/41.7 (1.5/0.77/1.1)
Weight lb (kg) 982 (445)
of pulling power in a compact, highly efficient bursting system.
Its simple to set up, easy to operate and leaves a small footprint.
Its quick replacement jaw inserts, onboard pressure gauges and
auto rod grip-and-release make the pipe bursting operation as
simple and efficient as it can possibly be.
POWER FOR PRODUCTIVITY. The HB5058 system was designed
for productivity. In average soil conditions, it can complete a
400-foot job in as little as two hours from rod payout to pullback.
Pin joints speed up tooling connections and slitting accessories
are available so you can take on even the toughest ductile iron
and steel pipes.
TOUGH & LOW WEIGHT RODS. Our low-weight, heat-treated alloy
pull rods feature an API-style joint. The proven joint design has
no problem taking the thrust encountered as you push around a
sweeping bend, through encrusted and collapsed lines and all the
way to the end of your longer bursting runs.
SIGNATURE SUPPORT. You need more than just a manufacturer for
your trenchless operations you need a partner. At HammerHead®
Trenchless, it is our mission is to help you succeed on every job.
Our customer service is available 24/7, so you always get your
answers when you need them. Our world-class, on-site training
keeps your crews confident and efficient. And when your job calls
for a custom solution, our team of industry experts is ready to
help. At HammerHead Trenchless, the most important feature on
all of our products is the signature support that comes with it.
Pipe replacement range in (mm) 4 8 (100 200)
Max. pulling force tons (t) 50 (45.4)
Rig Size L/W/H in (m) 65/22/13 (1.65/0.56/0.33)
Minimum Pit Size L/W/H in (m)* 85/22/7 (2.16/0.56/0.18)
Weight lb (kg) 928 (421)
Maximum Shuttle Speed** 22 seconds
RODSRod Weight lb (kg) a. 35.0 (15.9); b. 17.2 (7.8)
Rod Diameter in (mm) a. 2.00 (50); b. 1.38 (35)
Rod Length in (cm) a. 39.38 (100); b. 39.38 (100)
Engine Manufacturer Kubota
Cooling System Water Cooled
Engine HP (kw) 24.8 (18.5)
Pump Flow gpm (L/min) 26.8 (101) @ 3,000 RPM
Hydraulic Pressure Max psi (bar) 3,000 (207)
Rig Size L/W/H in (m) 57.7/30.4/41.7 (1.5/0.77/1.1)
Weight lb (kg) 982 (445)
